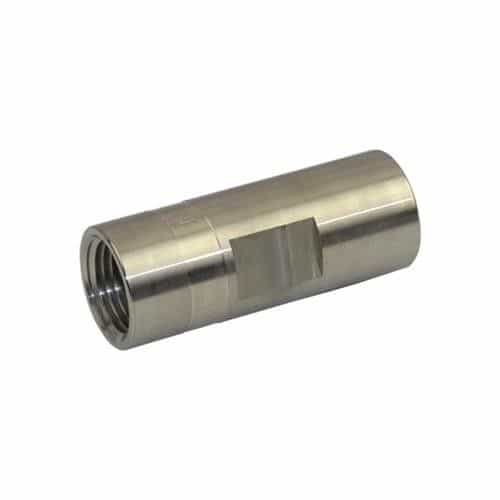

SMC 6454390 Stainless Steel 815 Series Check Valve - 1/2 Female x 1/2 Female, 500 PSI

Brand:
Mfr. Model #:
6454390
KR Part #:
CV0076
Weight:
0.25 lbs
Usually Ships in 4 Weeks
MSRP
$75.64
Now Only!
$39.79
An 815 Series check valve with a corrosion resistant stainless steel construction. Cracking pressure is set to activate the valve with a less than 1 PSI change. Endures a maximum pressure of 500 PSI.



Technical Specifications

Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Max PSI: 500

Product Description

1/2" Check Valve

The SMC 6454390 is a Series 815 check valve with a cracking pressure of less than 1 PSI. Equipped with a Viton seal to handle a wide range of chemicals. It has a strong resistance to corrosion thanks to its stainless steel construction. Engineered to withstand a maximum pressure of 500 PSI. Pipe connections measure 1/2" female.

Specifications:
  • Series: 815
  • Valve Type: Check Valves - Stainless Steel
  • Max. Operating Pressure PSI: 500
  • Max. Operating Temperature °F: Varies
  • Material: Stainless Steel
  • Body Plating Options: No Plating
  • Check Mechanism: Piston
  • Inlet: Female 1/2
  • Outlet: Female 1/2
  • Seal Options: Fluoroelastomer (Viton)
  • Spring Option/Material: Stainless Steel
  • Cracking Pressure: <1LB
