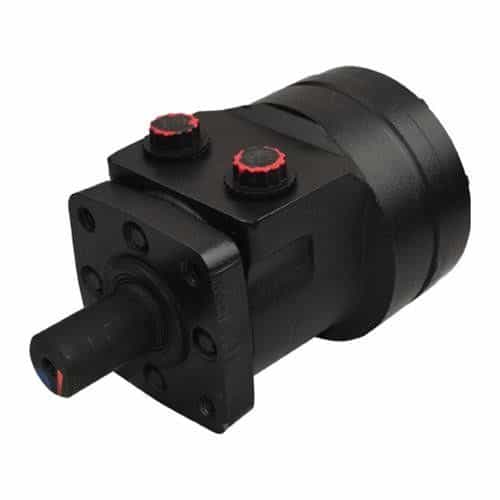

Char-Lynn 103-1005-012 S-Series Motor - 15 GPM, 304 RPM, 1850 PSI
Brand:
Mfr. Model #:
103-1005-012
KR Part #:
CL103-1005-012
Weight:
16.20 lbs
Availability:
1
Low-speed, high-torque motor that provides constant torque and output motion through fixed displacement. Excellent choice for high-load capacities. The perfect fit for winches, conveyors, process equipment, and agitator drives.
Technical Specifications
Max GPM: 15
Max PSI: 1850
RPM: 304
Max Temperature: 180 degrees F
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
304 RPM Hydraulic Motor
The Char-Lynn 103-1005-012 S-series gerotor motor is designed with state of the art technology! It produces an optimized drive running angle using just three moving components- the gerotor star, drive, and shaft - to deliver high efficiency performance. Use this S-series motor when powering car wash brushes, agricultural harvesters, food processing equipment, conveyors, and more.
Specifications:
- High-load capacity
- Three moving parts: gerotor-star, drive, and shaft
- 4-bolt flange mount
- Maximum operating temperature: 180° F
- Maximum flow rate: 15 GPM continuous; 20 GPM intermittent
- Maximum pressure: 1850 PSI continuous; 2250 PSI intermittent
- Maximum speed: 304 RPM (continuous)
- Maximum torque: 2950 inch pounds continuous; 3533 inch pounds intermittent
- 1/2-14 NPTF motor port
- 1/2-14 NPTF Ports Size 8MP inlet and outlet
- 1" straight shaft
- Char-Lynn item #103-1005-012
Please note: intermittent operation refers to running the pump no more than 10% of each minute.
