304 RPM Motor

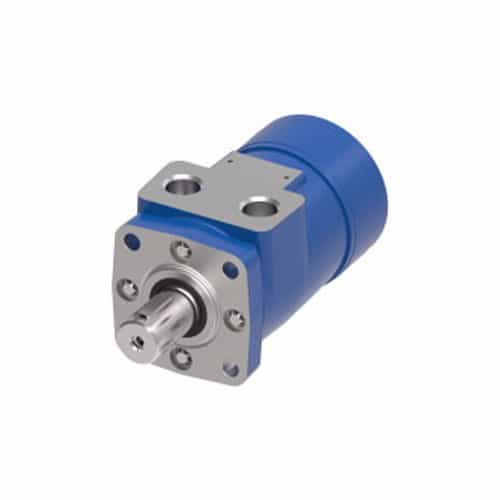

The Char-Lynn 101-1005-009 H-series motor is great for use in car washes, agriculture, food processing, and more! It produces an optimized drive running angle using just three moving components and delivers high efficiency performance.

• H-Series motor
• Medium duty performance
• Three moving parts: gerotor-star, drive, and shaft
• 4-bolt flange mount
• 1" ring
• Maximum operating temperature: 180° F
• Maximum flow rate: 15 GPM continuous; 20 GPM intermittent
• Maximum pressure: 1600 PSI continuous; 2150 PSI intermittent
• Maximum speed: 304 RPM (continuous)
• Maximum torque: 2343 inch pounds continuous; 3151 inch pounds intermittent
• 1/2-14 NPTF motor port
• 1/2-14 NPTF 8MP inlet and outlet ports
• 1" straight shaft
• Char-Lynn item #101-1005-009

Please note: intermittent operation refers to running the pump no more than 10% of each minute.
