Turck NI15U-EM18WD-AN6X-H1141 Inductive Sensor - 3-Wire 10-30 VDC
Brand:
Mfr. Model #:
NI15U-EM18WD-AN6X-H1141
KR Part #:
TPS1000
Weight:
0.26 lbs
An inductive sensor designed for wear-free and contactless detection of metal objects. These sensors help you to automate your car wash bays and are sealed tight, resistant to cleaning chemicals.
Product Description
Food Industry Grade Proxiimity Switch

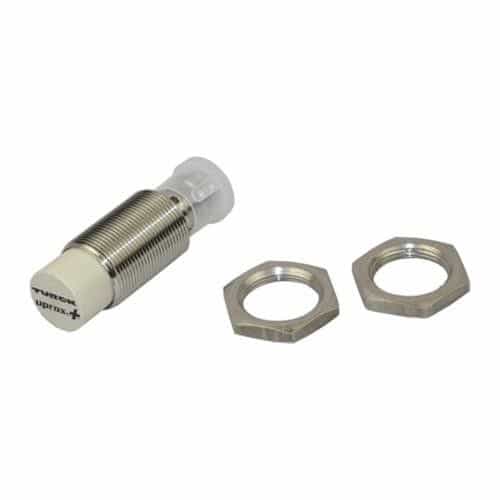

These pressure resistant Uprox+ sensors have significant advantages due to their patented ferrite coreless multi-coil system. They detect all metals at the same large switching distance and are resistant to magnetic fields. NI15U-EM18WD-AN6X-H1141 is an 18mm threaded barrel style with a non-embeddable M18 and M12 Eurofast connections. This model is also suited for the food industry with a special double lip seal and a front cap made of liquid crystal polymer, protection against all common acidic and alkaline cleaning agents.
Specifications:
- Threaded barrel, M18 x 1
- 15mm sensing range
- Stainless steel, 1.4404 housing
- Liquid crystal polymer cap
- Factor 1 for all metals
- Protection class IP68/IP69K for harsh environments
- Resistant to magnetic fields
- Temp range: -40 to 212 degrees F
- Special double lip seal
- DC 3-wire, 10-30 VDC
- NO contact, NPN output
- M12 x 1 male connector
