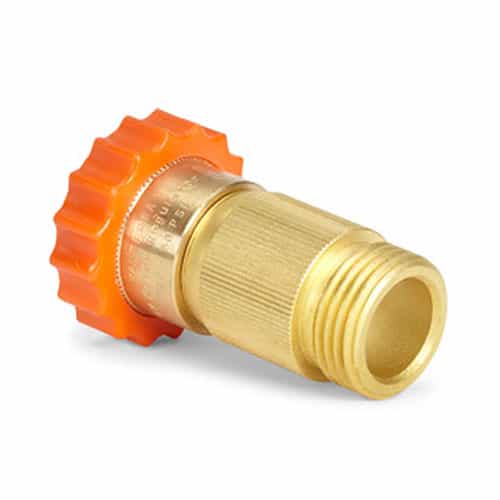

CAT Pumps 7069 Brass Inlet Pressure Regulator - 3/4 Inch GH F x M, 10 GPM, 200 PSI

Brand:
Mfr. Model #:
7069
KR Part #:
PU7069
Weight:
0.48 lbs

Usually Ships in 2 Weeks

MSRP
$76.13
Now Only!
$50.23

A regulator that guards against dangerous pressure levels. Compact design. Tolerates a maximum pressure of 200 PSI and a flow rate of 10 GPM.

Note: Not suitable for 10 GPM unless 200 PSI inlet pressure.




Technical Specifications

Max PSI: 200
Max GPM: 10
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Max Temperature: 190 degrees F

Product Description

Pressure Reducing Valve

CAT Pumps 7069 is an inlet pressure regulator used to prevent pressure spikes and over pressure from damaging the pump. Created with a compact tamper resistant design to reduce space requirements and combat tampering. Handles a maximum flow rate of 10 GPM and a maximum pressure of 200 PSI. Equipped with an inlet port measuring 3/4-inch GHF and a discharge port measuring 3/4-inch GHM.

Specifications:

  • Max Flow: 10 GPM
  • Max Pressure: 200 PSI
  • Inlet Port Size: 3/4" GH(F)
  • Discharge Port Size: 3/4" GH(M)
  • Pressure Range to Pump: 30 - 45 PSI
  • Maximum Temperature: 190 degrees F
  • Accessory Type: Inlet Regulators
  • Material: Brass
  • Weight: 0.48 lbs.
  • Dimensions: 1.67 x 2.64"

Features:

  • Prevents over pressure or pressure spikes at the pump inlet
  • Convenient, compact in-line installation
  • Tamper-proof design protects pumps from neglect or improper system conditions
  • Reduces inlet water pressures of 40 - 200 psi to pump inlet pressures of 30 - 45 psi
