Bottom Mount 300 PSI Dry Pressure Gauge

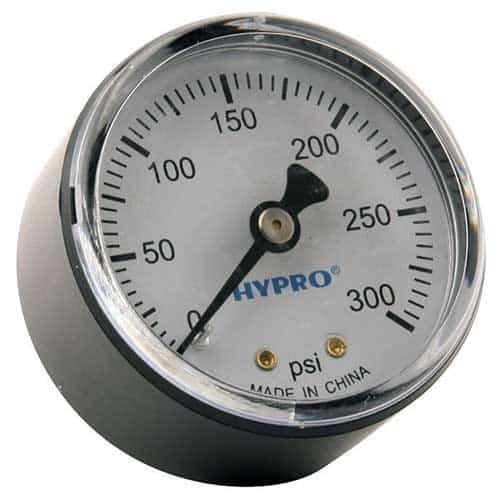

The Hypro SG300 Pressure Gauge is a plastic body gauge with an acrylic face. It has a 1/4" NPT connector stem and a 2 1/2" dial. Used in applications up to 300 PSI and mounted from the bottom. Part of the SG Series from Hypro, this gauge is designed for use with air, gas, oil, water, and other materials that are non-corrosive to brass and bronze.

Specifications:

• 300 PSI
• 1/4" NPT brass connection stem
• Bottom mount
• Dial: 2 1/2" with white aluminum background
• Case Material: Plastic
• Movement: Brass
• Bourdon Tube: C-shaped copper alloy
• Pointer Material: Black-enameled aluminum
• Window Material: Acrylic
• Accuracy: ASME/ANSI  B40.1 Grade B (3-2-3%)
• This is a dry gauge with no liquid to cut down on vibration

UPC:

• GTIN: 634332042003
