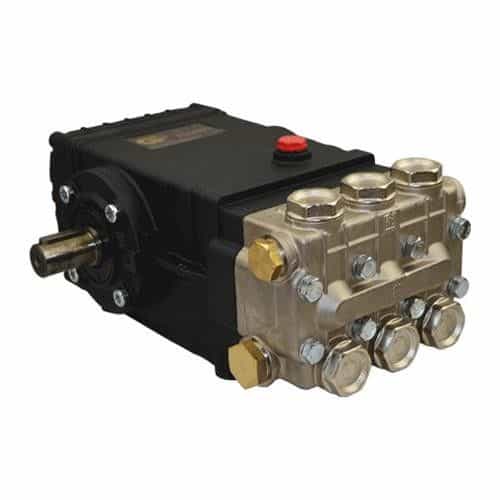

General Pump T1621L Left Shaft T-Series 47 S Pump - 5 GPM, 2500 PSI, 1050 RPM
Brand:
Mfr. Model #:
T1621L
KR Part #:
GPT1621L
Weight:
32.00 lbs
GTIN:
682491142157
High-pressure plunger pump with forged brass manifold and unitized stainless steel inlet/discharge valves. From General Pump T-Series 47S Series. 5 GPM, 2500 PSI, 1050 RPM. Great for heavy-duty applications!
This is the left shaft version of the T1621 pump.
This is the left shaft version of the T1621 pump.
Technical Specifications
Bore: 22 millimeter
Crankcase Capacity: 40.6 ounce
Inlet Port: 1/2 inch
Max GPM: 5
Max Temperature: 165 degrees F
RPM: 1050
Shaft Diameter: 24 millimeter
Stroke: 16 millimeter
Max PSI: 2500
Product Description
Left Shaft T1621 Pump
The General Pump T1621L Pump is a heavy-duty plunger pump with a forged brass manifold, oversized connecting rods, strong taper roller bearing, and solid ceramic plungers. Features unitized stainless steel inlet and discharge valves. This is a highly preferred pump frame in the pressure cleaning industry!Left side version of the T1621 pump.
Specifications:
- Maximum Volume: 5.0 GPM
- Maximum Discharge Pressure: 2500 PSI
- Maximum Pump Speed: 1050 RPM
- Maximum Inlet Pressure: 125 PSI
- Plunger Bore: 22mm (.866")
- Plunger Stroke: 16mm (.630")
- Crankcase Oil Capacity: 40.6 oz.
- Maximum Fluid Temperature: 165° F
- Inlet Port Thread: 1/2-14 BSPP-F
- Discharge Port Thread: 3/8-19 BSPP-F
- Shaft Diameter: 24mm (.945")
- Left shaft
- Weight: 32 lbs.
- Dimensions: 12.2" x 9.2" x 6.9"
- The preferred pump frame in the pressure cleaning industry
- Forged brass manifold
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Over-sized connecting rods for maximum life
- Heavy-duty tapered roller bearing
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
