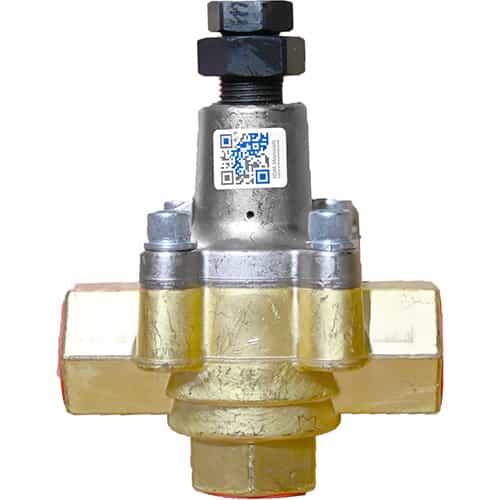

Hydra-Cell C23ABBNSSJG Bypass Pressure Regulating Valve - 1in.

Brand:
Mfr. Model #:
C23ABBNSSJG
KR Part #:
WPC23ABBNSSJG
Weight:
5.55 lbs
In Stock
MSRP
$567.00
Now Only!
$368.55
This C-Series Hydra-Cell valve bypasses system fluid to prevent excess system pressure. 1"



Technical Specifications

Max PSI: 1000
Min PSI: 500
Max Temperature: 200 degrees F
Max GPM: 20
Inlet Port: 1 inch
Outlet Port: 1 inch

Product Description

Replacement Pressure Regulation Valve

When a system discharge is completely closed such as a closed spray gun, closed valve or plugged nozzle - the Hydra-Cell Valve bypasses the total system fluid flow. They also balance system pressure for multiple-gun operations.

The Hydra-Cell Valve design is simple: a tapered plunger with a valve seat. When excess pressure overcomes the adjustable spring pressure on the plunger, the plunger lifts off the seat, allowing fluid to bypass and reduce system pressure. When a Hydra-Cell Valve is mounted in the discharge line, its modified flow-through design reduces wear on the plunger and seat. Baffles on either side of the plunger and seat extend life by directing the flow around these internal components.

For service, simply remove the top of the body and replace the worn internal components. Hydra-Cell Valves can be serviced in place without removing any fittings or plumbing.

Specifications:

  • Inlet/Outlet Ports: 1" NPT
  • Max. Temperature: 200 F
  • Pressure Range: 500-1000 PSI
  • Capacity: 3 - 20 GPM
  • Dimensions: 6" x 3.4" x 2.2"

Product Reviews

Frequently Asked Questions

Question:What is the part number for a seal kit? I have one that is leaking. - Geoff (10/29/2020)
Response:A repair kit is not available for this valve.
