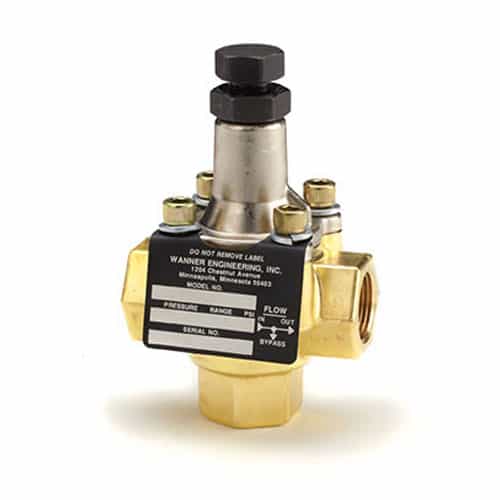

Hydra-Cell WPC22ABBNSSEF Brass Pressure Regulating Valve 10 GPM, 1000 PSI

Brand:
Mfr. Model #:
C22ABBNSSEF
KR Part #:
WPC22ABBNSSEF
Weight:
3.08 lbs
In Stock
MSRP
$401.00
Now Only!
$260.65
Balances flow in multi-gun car wash systems. Prevents excess pressure build up. Easily Service.



Product Description

C Series Pressure Regulating Valve - C22

Engineered to be used with any positive displacement pump. Prevents build up of excess pressure in the system. The C22 valve balances the flow in multi-gun systems. When a system discharge is completely closed (e.g. closed spray gun, closed valve, plugged nozzle) the Hydra-Cell valve bypasses the total system fluid flow. When excess pressure overcomes the adjustable spring pressure on the plunger, the plunger lifts off the seat, allowing fluid to bypass and reduce system pressure. Baffles on the plunger and seat direct flow around these components extending their life. To service simply lift the top of the body and replace any worn or malfunctioning components.

Specifications:

  • Flow Capacity Maximum: 10.0 GPM
  • Pressure Range: 500-1000 PSI
  • Maximum Temperature 200°F
  • Inlet Port: 3/4" NPT
  • Outlet Port: 3/4" NPT
  • Weight: 3 lbs.

Product Features:

  • Accurate and repeatable.
  • Adjustable.
  • Immediate response.
  • Smooth, chatter-free bypass.
  • No external springs or moving parts.
  • Flow-through design with minimal pressure surge.
  • Heavy-duty construction.
