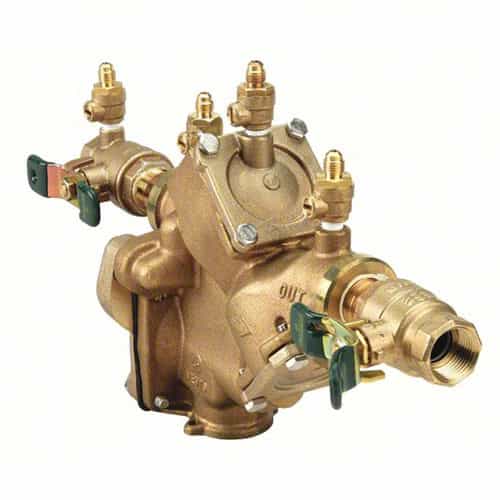

Watts 3/4 LF909-QT-S-FS Small Series 3/4 in. Reduced Pressure Zone Assembly Backflow Preventer

Brand:
Mfr. Model #:
3/4 LF909-QT-S-FS (F122774)
KR Part #:
WBF909QTS12
Weight:
18.00 lbs
GTIN:
098268646665
Usually Ships in 2 Weeks
MSRP
$2,958.28
Now Only!
$2,113.06
Diameter of inlet and outlet is 3/4 inch. Prevents polluted water from entering a potable water supply. Complies with water authority requirements.



Technical Specifications

Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Max Temperature: 140 degrees F
Max PSI: 175
Min Temperature: 33 degrees F

Product Description

3/4" Backflow Prevention Valve

Inlet and outlet both measure 3/4 inch in diameter. Constructed with lead free materials. Features an exclusive design integrating a patented air-in and water-out principle. Prevents polluted water from entering a potable water supply due to back siphonage. Ideal for use in continuous pressure piping applications, cross-connections identified as health hazards, and service line entrances. Manufactured to comply with national plumbing codes and water authority requirements.

Specifications:

  • Backflow Preventer Type: Reduced Pressure Zone Assembly
  • Body Finish: Cast Bronze
  • Body Material: Lead Free Bronze
  • Body Pattern: Inline
  • Brand Name: Watts
  • Buy American Act Compliant: YES
  • Bypass: No
  • Cap And Tether: No
  • Disc Material: Silicone
  • EAN: 098268646665
  • Elbow Fitting: No
  • Hazard Protection Level: Health Hazard
  • Hot And Harsh Water: No
  • Hydrant Connection: No
  • Inlet Connection Size: 3/4 IN
  • Inlet Connection Size-Metric: 20 MM
  • Inlet Connection Type: Female Threaded
  • Inlet Shutoff Valve Type: Quarter Turn Ball Valve
  • Inlet Thread Type: NPT
  • Lead Free: YES
  • Maximum Temperature-Fahrenheit: 140
  • Maximum Working Pressure-BAR: 12.10
  • Maximum Working Pressure-PSI : 175
  • Meter Type: No Meter
  • Minimum Temperature - Celsius : 0.50
  • Minimum Temperature-Fahrenheit: 33
  • Outlet Connection Size: 3/4 IN
  • Outlet Connection Type: Female Threaded
  • Outlet Shutoff Valve Type: Quarter Turn Ball Valve
  • Outlet Thread Type: NPT
  • Part Number: 0122774
  • Polymer Coating: No
  • Pressure Operation: Continuous
  • Protection Type: Backpressure and Back siphonage
  • Seat Material: Engineered Plastic
  • Series: LF909 Small
  • Strainer: Yes
  • Tradename: None

Features

  • Compact for easy installation
  • Unique patented air-in and water-out design provides high capacity relief valve discharge performance during emergency conditions
  • Lead free construction
  • Quarter-turn ball valves with tee handles Type: Kit
  • Includes Strainer
