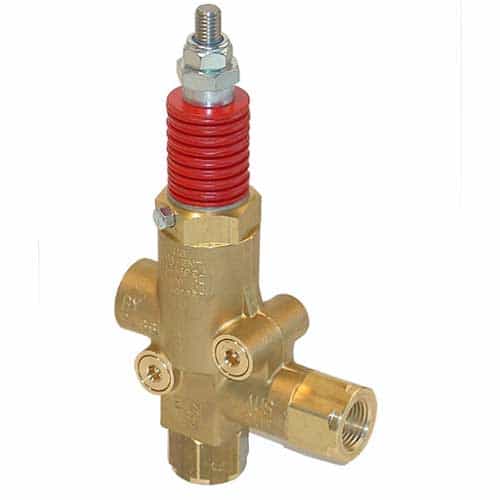

Giant Adjustable Unloader, 2000 PSI, 13 GPM, Red Springs
Brand:
Mfr. Model #:
22912A
KR Part #:
PU22912
Weight:
3.58 lbs
GTIN:
814338022555
This pressure-actuated unloader is designed for any pump that fits within the flow and pressure range of the unloader. The unloader regulates the flow in the system and maintains system pressure. The adjustable nut controls the amount of pressure on the red pressure spring.
Technical Specifications
Min GPM: 2.2
Max GPM: 13
Max Temperature: 160 degrees F
Min PSI: 375
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Max PSI: 2000
Product Description
22912A Pressure-Actuated Unloader with Red Spring
Buy the Giant 22912A model unloader at Kleen-Rite at a great low price! When no flow is going out the outlet port, all flow is diverted to the bypass port at virtually no pressure. The unloader is capable of handling one or more shut-off guns and should be run with no bypass (if the full flow from the pump is going through the unloader). It actuates at around 10% above the system pressure.
- 1/2" inlet and outlet FNPT ports
- 1/2" BSP bypass
- Max temp: 160°F
- Max Flow 13 GPM
- Min Flow 1.3 GPM
- Max PSI: 2000 PSI
- Min Pressure 375 PSI
