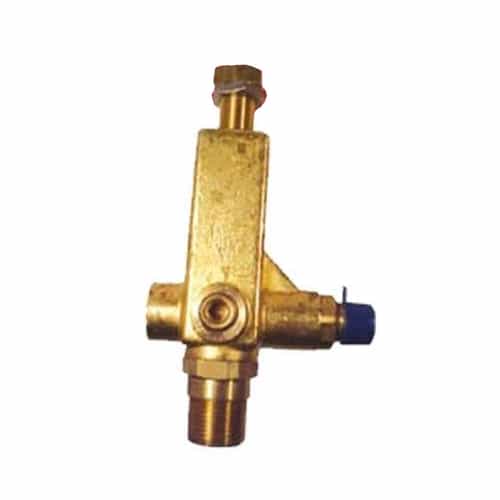

Giant Pumps 22656 Flow Actuated Unloader, 3000 PSI, 4.5 - 6.5 GPM
Brand:
Mfr. Model #:
22656
KR Part #:
PU22656
Weight:
2.00 lbs
Protect your pumps and easily regulate flow rate in your car wash pump systems. Brass unloader, 3/8" inlet and outlet. Handles continuous pressure up to 3000 PSI.
Technical Specifications
Min GPM: 4.5
Max GPM: 6.5
Max PSI: 3000
Max Temperature: 160 degrees F
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Bypass Port: 3/4 inch
Product Description
Flow Actuated Unloader
Essential for regulating flow in pump systems and maintaining pressure. Diverts flow to bypass port when no flow is going out to the outlet port. This unloader regulates the flow in the system and maintains system pressure via an adjustable nut that controls the amount of tension on a pressure spring. When no flow is going out the outlet port, all flow is diverted to the bypass port at virtually no pressure. Flow unloaders do not "trap" pressure, so they eliminates the need for an easy start valve.
Specifications:
- Normal Pressure Range: 0 PSI to 3000 PSI
- Flow Range: 4.5-6.5 GPM
- Maximum Temperature: 160°F
- Inlet Port: 3/8" FNPT
- Outlet Port: 3/8" FNPT
- Bypass Port: 3/4" MNPT
