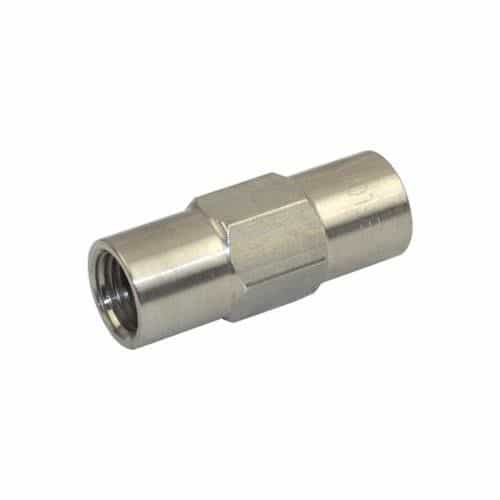

Fluid Controls CV-100 Stainless Steel Check Valve - 1/4 In FxF , 3500 PSI, 4 GPM, Viton

Brand:
Mfr. Model #:
CV-100
KR Part #:
CV0013
Weight:
0.12 lbs
In Stock
MSRP
$29.38
Now Only!
$19.45
Stainless steel body check valve with a Viton O-ring. 1/4" x 1/4" NPT female ports. Maximum pressure of 3500 PSI, with up to 4 GPM flow rate.



Technical Specifications

Inlet Port: 1/4 inch
Max GPM: 4
Max PSI: 3500
Max Temperature: 170 degrees F

Product Description

1/4" F x 1/4" F Check Valve with Viton Seal

The Fluid Controls CV-100 check valve allows you to keep water and fluids flowing in one direction within your high-pressure system. This one-way valve has 1/4" female ports, is rated for 4 GPM, and has a maximum pressure tolerance of 3500 PSI. Stainless steel body with Viton O-ring.

Specifications:

  • Female 1/4" x 1/4" ports
  • 4 GPM flow rate
  • 3500 PSI maximum pressure
  • 10 PSI open pressure
  • 170° Fahrenheit maximum temperature
  • Viton O-ring
  • Stainless steel construction

Features:

  • Leak-proof operation
  • Valve is rebuildable
  • Unique V type seat and floating piston guide provides a continuous wiping.

Product Reviews

Frequently Asked Questions

Question:what is the cracking pressure and where do i get the rebuild kit - AL (02/02/2021)
Response:1-3 psi cracking pressure. You will purchase the repair kit from us. The kit part number is CV0013K.
