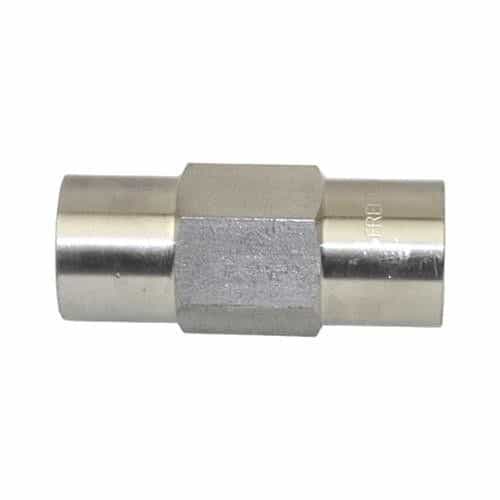

Fluid Controls CV-700 Stainless Steel Check Valve - 1/2 In FxF, 3500 PSI, 4 GPM, Viton

Brand:
Mfr. Model #:
CV-700
KR Part #:
CV0071
Weight:
0.31 lbs
In Stock
MSRP
$48.83
Now Only!
$31.78
Stainless steel body check valve with a Viton O-ring. 1/2" x 1/2" NPT female ports. Maximum pressure of 3500 PSI, with up to 4 GPM flow rate.



Technical Specifications

Max Temperature: 170 degrees F
Max PSI: 3500
Inlet Port: 1/2 inch
Max GPM: 12

Product Description

1/2" F x 1/2" F Check Valve with Viton Seal

The Fluid Controls CV-700 check valve allows you to keep water and fluids flowing in one direction within your high-pressure system. This one-way valve has 1/2" female ports, is rated for 4 GPM, and has a maximum pressure tolerance of 3500 PSI. Stainless steel body with Viton O-ring.

Specifications:

  • Female 1/2" x 1/2" ports
  • 4 GPM flow rate
  • 3500 PSI maximum pressure
  • 10 PSI open pressure
  • 170° Fahrenheit maximum temperature
  • Viton O-ring
  • Stainless steel construction

Features:

  • Leak-proof operation
  • Valve is rebuildable
  • Unique V type seat and floating piston guide provides a continuous wiping.
