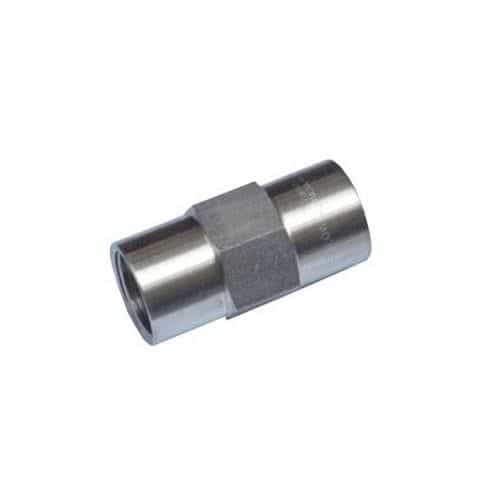

Fluid Controls CV-800T Stainless Steel Check Valve - 3/4 In FxF, 3500 PSI, 4 GPM, PTFE
Brand:
Mfr. Model #:
CV-800-T
KR Part #:
CV0080T
Weight:
0.48 lbs
Out of stock - Pre-Order Now!
Stainless steel body check valve with a PTFE O-ring. 3/4" x 3/4" NPT female ports. Maximum pressure of 3500 PSI, with up to 4 GPM flow rate.
Product Description
3/4" F x 3/4" F Check Valve with PTFE Seal
The Fluid Controls CV-800T check valve allows you to keep water and fluids flowing in one direction within your high-pressure system. This one-way valve has 3/4" female ports, is rated for 4 GPM, and has a maximum pressure tolerance of 3500 PSI. Stainless steel body with a PTFE O-ring.
Specifications:
- Female 3/4" x 3/4" ports
- 4 GPM flow rate
- 3500 PSI maximum pressure
- 10 PSI open pressure
- 170° Fahrenheit maximum temperature
- PTFE O-ring
- Stainless steel construction
Features:
- Leak-proof operation
- Valve is rebuildable
- Unique V type seat and floating piston guide provides a continuous wiping.
