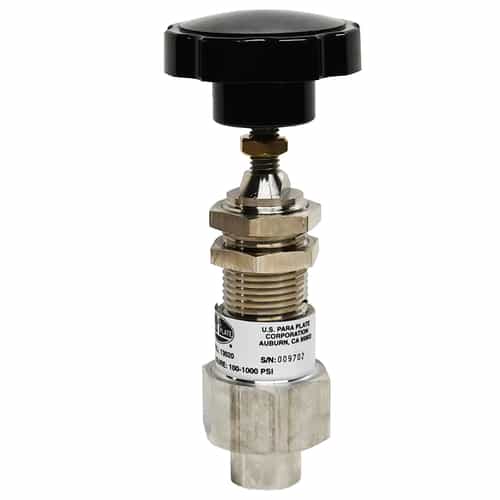

U.S. Paraplate 13020 Corrosive Liquid Back Pressure Regulator - 1000 PSI, 8 GPM
Brand:
Mfr. Model #:
13020
KR Part #:
RE13020
Weight:
1.20 lbs
A dual function back pressure regulator and relief valve. Wetted parts are all made with 316 stainless steel to fight corrosion. It handles a maximum pressure of 1000 PSI and flow rate of 8 GPM.
Technical Specifications
Max PSI: 1000
Max GPM: 8
Min PSI: 100
Min GPM: .5
Min GPM: .5
Min Temperature: 0 degrees F
Max Temperature: 300 degrees F
Product Description
Abrasive Liquid Relief Valve
The U.S. Paraplate 13020 is a pressure regulator that is designed to withstand corrosive, inert, and mildly abrasive fluids. The wetted areas are constructed using 316 stainless steel and the valves housing is made with brass. Operates as a continuous flow-through bypass valve. It serves as a back-pressure regulating and pressure relief valve. Engineered to hold the selected pressure setting even with extreme and abrupt low changes. Valve features a built-in dashpot which eliminates chattering and hammering.Specifications:
- Pressure Range: 100 to 1000 PSI
- Flow Rate: .5 - 8 GPM
- Inlet: 1/4"
- Outlet: 3/8"
- Temperature: 0-300 Degrees F
- Wetted Area: 316 Stainless Steel
- Spring Housing: Brass
- Housing: Brass
- Spring: Chrome Vanadium
- Handwheel: Plastic
- Seals: Viton
- Dual Function: Pressure Regulator and Overpressure Protection
- Erosion Resistant
- Quick Response
- Handwheel control
- Most Systems Where Pump Output is Fixed
- Reverse Osmosis
- Hydrostatic Test Units
- High Pressure Sprayers and Washers
- High Pressure Injection Systems
