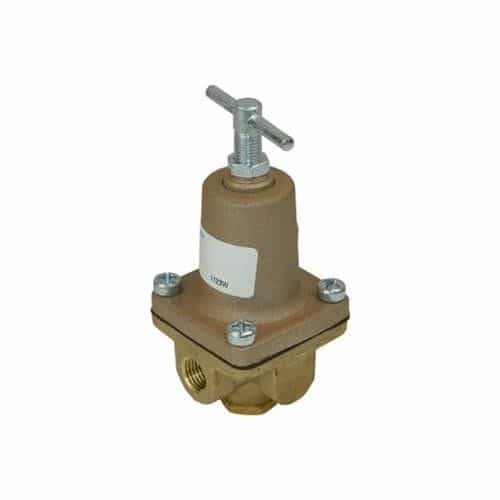

Watts 1/4 LF26A Lead Free Brass 2-Way Small Water Pressure Regulator - 300 PSI, 1/4 Inch Ports
Brand:
Mfr. Model #:
1/4 LF26A (0009812)
KR Part #:
RE26A4
Weight:
1.06 lbs
GTIN:
098268428698
A water pressure regulator with 1/4-inch female threaded NPT ports. Tolerates a maximum pressure of 300 PSI. Made with brass.
Technical Specifications
Max PSI: 300
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Max Temperature: 140 degrees F
Product Description
1/4 Inch Small 2-Way Pressure Regulator
This water pressure regulator is engineered for small general-purpose applications to regulate water pressure in piping systems. Uses an oversized orifice ideal for use with beverage dispensing, paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. Constructed with a lead-free body made with brass and an adjusting tee handle. Offers a 1/4-inch female threaded NPT inlet and outlet.
Specifications:
- Adjustable Reduced Pressure Range: 10 to 125
- Body Material: Lead Free Brass
- Corrosion Resistant Coating: No
- Gauge Option: No Gauge
- Inlet Connection Size: 1/4" FNPT
- Maximum Operating Temperature: 140 degrees F
- Maximum Working Pressure: 300 PSI
- Outlet Connection Size: 1/4" FNPT
- Part Number: 0009812
- Series: LF26A
- Standard Reduced Pressure Setting: 25 PSI
- Valve Style: 2-way
Features:
- Lead free brass body
- Tee handle adjustment
- Stainless steel stem and spring
- NPT threaded female inlet and outlet connections
- Oversized orifice
