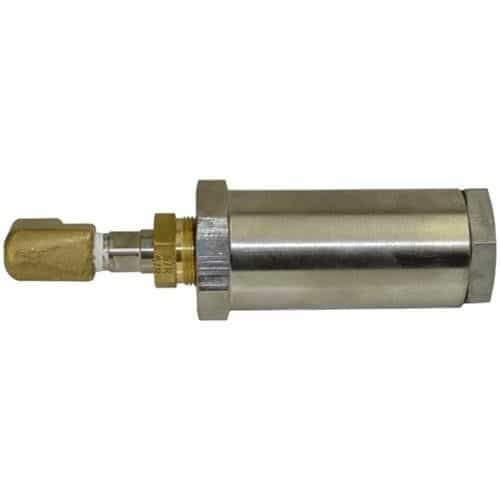

US ParaPlate BR10-1.5 Regulator with 1/2 in. x 1/4 in. Ports - 10 GPM, 500-1500 PSI
Brand:
Mfr. Model #:
BR10-1.5
KR Part #:
REBR1015
Weight:
2.53 lbs
Brass body regulator to maintain consistent pressure in high-power water systems. 10 GPM, 500-1500 PSI, 250° F.
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 10
Max PSI: 1500
Max Temperature: 250 degrees F
Product Description
Car Wash Pressure Regulation Device - 500 to 1500 PSI
This U.S. ParaPlate BR10-1.5 regulator allows you to maintain a constant desired pressure and protect the other components in your car wash system. This pressure regulator has a max flow rate of ten GPM and a pressure rating from 500-1500 PSI. Inlet is 1/2"
Features:
- Regulates pressure and absorbs normal pulsation
- Repeatable and accurate setting
- Regulates pressure within 5% regardless of flow rate
- Easily maintained
Specifications:
- 250° Fahrenheit maximum temperature
- 500-1500 PSI pressure rating
- 10 gallons per minute flow rate
- Weighs 3.0 pounds
Material Construction:
- Body: Electroless nickel-plated brass
- Inlet Cap: 416 stainless steel
- Stem: Electroless nickel-plated hardened steel
- Piston: 416 stainless steel
- Springs: Spring steel
- Seals: Viton
Applications:
- Self and full-service car wash systems
- High-pressure sprayers and washers
- Systems with fixed pump pressure
- Hydrostatic test units
- Multi-drop cleaning systems in food plants and similar applications
- Multiple hose systems and on/off hand guns
