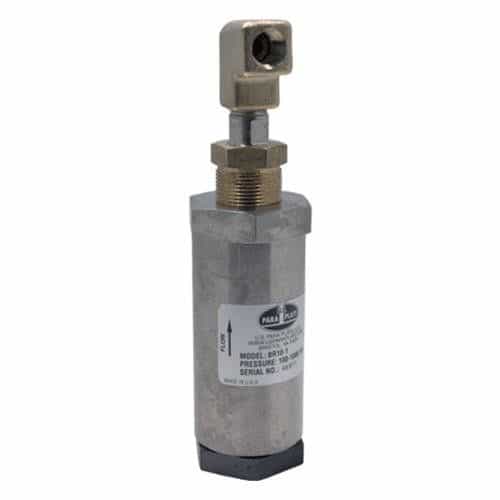

ParaPlate BR10-1 Regulator, 100-1000PSI, 10GPM, 1/2 Inlet, 1/4 Outlet
Brand:
Mfr. Model #:
BR10-1
KR Part #:
REBR101
Weight:
2.51 lbs
Brass body regulator to maintain consistent pressure in high-power water systems. 10 GPM, 100-1000 PSI, 250° F. 1/2" inlet port, 1/4" outlet port
Product Description
Car Wash Pressure Regulation Device - 100 to 1000 PSI
This U.S. ParaPlate BR10-1 regulator allows you to maintain a constant desired pressure and protect the other components in your car wash system. This pressure regulator has a max flow rate of 10 GPM and a pressure rating from 100-1000 PSI. Inlet is 1/2"
Features:
- Regulates pressure and absorbs normal pulsation
- Repeatable and accurate setting
- Regulates pressure within 5% regardless of flow rate
- Easily maintained
Specifications:
- 250° Fahrenheit maximum temperature
- 100-1000 PSI pressure rating
- 10 gallons per minute flow rate
- Weighs 3.0 pounds
Material Construction:
- Body: Electroless nickel-plated brass
- Inlet Cap: 416 stainless steel
- Stem: Electroless nickel-plated hardened steel
- Piston: 416 stainless steel
- Springs: Spring steel
- Seals: Viton¨
Applications:
- Self and full-service car wash systems
- High-pressure sprayers and washers
- Systems with fixed pump pressure
- Hydrostatic test units
- Multi-drop cleaning systems in food plants and similar applications
- Multiple hose systems and on/off hand guns
