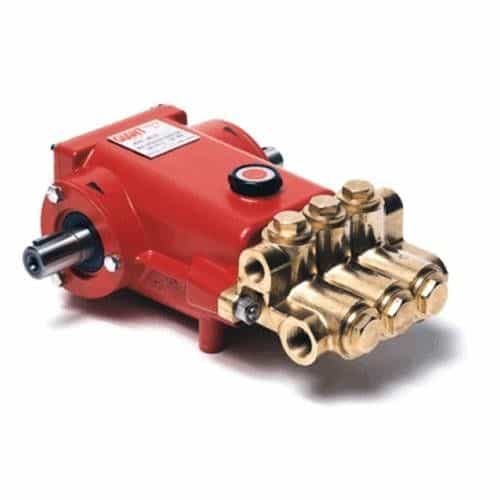

Giant Pumps SP100W Triplex Plunger Pump - 11.2 GPM, 1885 PSI, 1420 RPM, 14.6 HP

Brand:
Mfr. Model #:
SP100W
KR Part #:
PUSP100W
Weight:
42.00 lbs
Call For Availability
MSRP
$3,345.00
Now Only!
$1,575.51
This triplex plunger pump features solid ceramic oxide plungers and stainless steel valves for durability. It handles 1750 RPM and a maximum pressure of 1885 PSI. Pump produces a maximum flow rate of 11.2 GPM.



Technical Specifications

Max PSI: 1885
Max GPM: 11.2
RPM: 1420
Horsepower: 14.6
Max Temperature: 160 degrees F
Inlet Port: 3/4 inch
Outlet Port: 3/8 inch
Stroke: 20 millimeter
Crankcase Capacity: 23.7 ounce

Product Description

11.2 GPM - Reciprocating Plunger Pump

Giant Pumps SP100W is a German made pump with a shaft allowing for a motor to be attached to either side. Features 26mm ceramic oxide plungers. This pump generates a flow rate of 11.2 GPM and sustains a maximum pressure of 1885 PSI. Giant positive displacement pumps are reliable options for water systems at car washes.

Specifications:
  • Flow: 11.2 GPM
  • Maximum Discharge Pressure: 1885 PSI
  • Crankshaft Speed: 1420 RPM
  • Power: 14.6 HP
  • Max Temperature: 160 °F
  • Inlet Port Size: (2) 3/4" NPT
  • Discharge Port Size: (2) 3/8" NPT
  • Plunger Diameter: 1.02 in. (26 mm)
  • Stroke: 0.79 in. (20 mm)
  • Crankshaft Rotation: Top of Pulley Towards Manifold
  • Crankshaft Mounting: Either Side
  • Crankcase Oil Capacity US: 23.7 fl. oz.
  • Weight: 42 lbs.
Key Component Materials:
  • Manifold Material: Brass
  • Crankcase Material: Aluminum
  • Plunger Material: Solid Ceramic Oxide
  • Valve Material: High Grade Stainless Steel
  • Seal Material: Nitrile with Fabric Reinforcing
