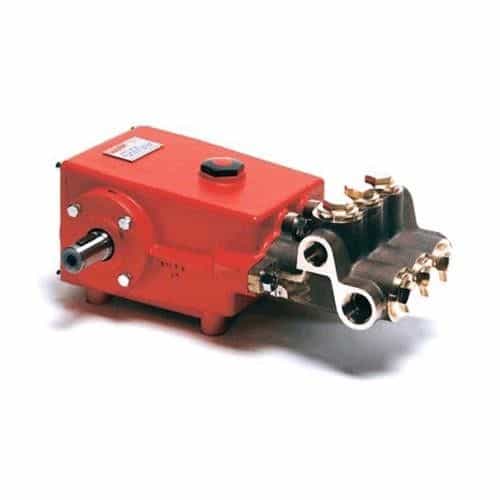

Giant Pumps MP4120 Triplex Plunger Pump - 8.9 GPM, 3625 PSI, 1450 RPM, 22.3 HP

Brand:
Mfr. Model #:
MP4120
KR Part #:
PUP4120
Weight:
66.00 lbs
Usually Ships in 2 Weeks
MSRP
$6,315.00
Now Only!
$5,200.59
This triplex plunger pump features solid ceramic oxide plungers and stainless steel valves for durability. It handles 1450 RPM and a maximum pressure of 1885 PSI. Pump produces a maximum flow rate of 8.9 GPM.



Technical Specifications

Max GPM: 8.9
Max PSI: 3625
RPM: 1450
Horsepower: 22.3
Shaft Diameter: 28 millimeter
Crankcase Capacity: 33.8 ounce
Inlet Port: 1 inch

Product Description

8.9 GPM - Reciprocating Plunger Pump

Giant Pumps MP4120 is a German made pump with a 28mm shaft that is designed to allow for a motor to be attached to either side. Features 20mm ceramic oxide plungers. This pump generates a flow rate of 8.9 GPM and sustains a maximum pressure of 3625 PSI. Giant positive displacement pumps are reliable options for water systems at car washes.

Specifications:
  • Flow: 8.9 GPM
  • Maximum Discharge Pressure: 3625 PSI
  • Crankshaft Speed: 1450 RPM
  • Power: 22.3 HP
  • Max Temperature: 160 °F
  • Inlet Port Size: (2) 1" NPT
  • Discharge Port Size: (2) 3/4" NPT
  • Plunger Diameter: 0.79 in. (20 mm)
  • Stroke: 1.02 in. (26 mm)
  • Maximum Inlet Pressure: 145 PSI
  • Crankshaft Diameter: 1.1 in. (28 mm)
  • Crankshaft Rotation: Top of Pulley Towards Manifold
  • Crankshaft Mounting: Either Side
  • Crankcase Oil Capacity: 33.8 fl. oz.
  • Weight: 66 lbs.
  • NPSHR: 7.5 mWs
Key Component Materials:
  • Manifold Material: Aluminum Bronze
  • Crankcase Material: Spheroidal Cast Iron
  • Plunger Material: Solid Ceramic Oxide
  • Valve Material: High Grade Stainless Steel
  • Seal Material: Nitrile with Fabric Reinforcing
