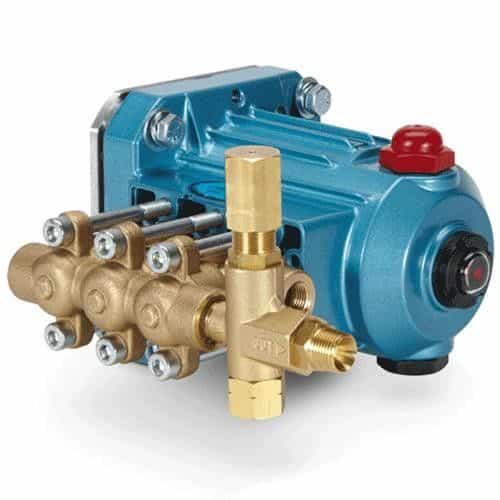

CAT Pumps 2SF30GS Direct Drive Plunger Pump - 3 GPM, 2000 PSI, 3450 RPM

Brand:
Mfr. Model #:
2SF30GS
KR Part #:
PU2SF30GS
Weight:
12.20 lbs
Out of Stock - Pre-Order Now
MSRP
$883.00
Now Only!
$452.10
A direct drive plunger pump designed with a 3/4" hollow shaft. Includes a regulating unloader to protect from pressure build up. Handles a maximum pressure of 2000 PSI.



Technical Specifications

Bore: 18 mm
Crankcase Capacity: 11.15 oz.
Inlet Port: 3/8 inch
Max GPM: 3
Max PSI: 2000
Max Temperature: 160 degrees F
RPM: 3450
Shaft Diameter: 3/4 inch
Stroke: 4.8 mm

Product Description

Gas Engine Powered Pump

CAT Pumps 2SF30GS is designed with a 3/4" hollow shaft for mounting directly with gas engines. Feature a manifold made with brass, 304 stainless steel valve assemblies, solid ceramic plungers, and NBR seals and O-rings. Includes a regulating unloader to protect the pump from pressure build up. Handles a maximum pressure of 2000 PSI, a flow rate of 3 GPM and a speed of 3450 RPM.

Specifications:

  • Max Flow: 3 GPM
  • Max Pressure: 2000 PSI
  • RPM: 3450
  • Inlet Port Size: 3/8" NPT(F)
  • Discharge Port Size: 3/8" NPT(M)
  • Stroke: 0.189"
  • Drive Type(s): Direct
  • GS: Gas 3/4" hollow shaft with bolt mount and adapter
  • Material: Brass
