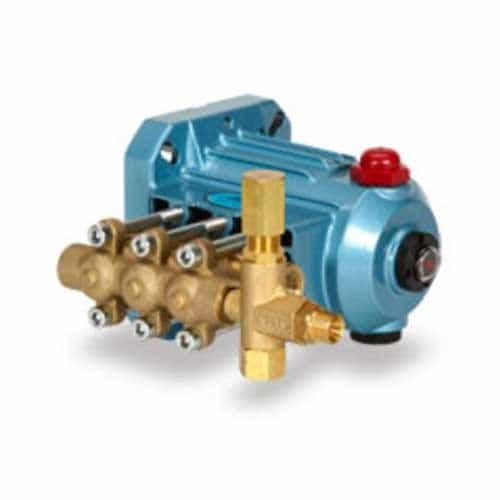

Cat 2SF29ELS Direct Drive Plunger Pump 2.85GPM 1500PSI
Brand:
Mfr. Model #:
2SF29ELS
KR Part #:
PU2SF29ELS
Weight:
11.80 lbs
CAT Pumps 2SF29ELS is a hollow-shafted pump that can be bolted directly to a c-face electric motor providing easy, compact installation.
Technical Specifications
Max GPM: 2.85
Stroke: 8.5 millimeter
RPM: 1725
Max PSI: 1500
Inlet Port: 3/8 inch
Crankcase Capacity: 10.1 ounce
Bore: 18 millimeter
Product Description
Cat 2SF29ELS Direct Drive Plunger Pump 2.85GPM 1500PSI
This is a triplex positive displacement, reciprocating plunger pump. It has a brass manifold, 304 stainless steel valve assemblies, and solid ceramic plungers. This 2SF29ELS model comes with standard NBR (Buna-N) seals and o-rings. The hollow shaft design can bold directly to a c-face electric motor.
Dimensions: 9.13" X 6.65" X 6.50"
- Compact and portable
- Unique spring loaded inlet valves provide a smooth, steady flow
- Easy installation to a c-face electric motor
- Maximum flow: 2.85 gpm
- Maximum discharge pressure: 1500 psi
- 1725 rpm
- Stroke: 0.335"
