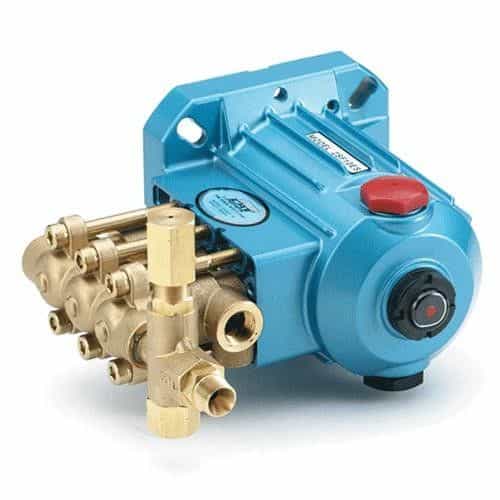

CAT Pumps 2SF10ES Direct Drive Plunger Pump - 1 GPM, 2000 PSI, 3450 RPM

Brand:
Mfr. Model #:
2SF10ES
KR Part #:
PU2SF10ES
Weight:
11.80 lbs
Out of Stock - Pre-Order Now
MSRP
$808.00
Now Only!
$413.70
A direct drive 2SF Series plunger pump. Fits electric motors with a 5/8" shaft. Handles 2000 PSI and generates a flow rate of 1 GPM.



Technical Specifications

Bore: 18 millimeter
Inlet Port: 3/8 inch
Max GPM: 1
Max PSI: 2000
RPM: 3450
Max Temperature: 160 degrees F
Crankcase Capacity: 10.1 ounce
Stroke: 4.8 millimeter

Product Description

1 GPM - 2SF Series Triplex Plunger Pump

CAT Pumps 2SF10ES is a positive displacement, reciprocating triplex plunger pump from the 2SF series. It shaft is designed for direct drive applications and couples with 5/8" shaft electric motor. Manifold is constructed with brass for strength and mild corrosion resistance. The valve assemblies are manufactured with 304 stainless steel for superior corrosion resistance and durability. It features NBR seals and for chemical resistance.

Specifications:
  • Max Flow: 1 GPM / 3.8 LPM
  • Max Pressure: 2000
  • Inlet Port Size: 3/8" NPT(F)
  • Discharge Port Size: 3/8" NPT(M)
  • RPM: 3450
  • Stroke: 0.189" / 4.8 mm
  • Inlet Pressure Range: Flooded to 75 PSI Flooded
  • Pump RPM: 3450 RPM
  • Bore: 0.708" / 18 mm
  • Max. Liquid Temperature (NBR): 160° F / 71° C
  • Crankcase Capacity: 10.1 oz
  • Bypass Port: 1/4" NPT(F)
  • Drive Type(s): Direct
  • Material: Brass
  • ES: 5/8" hollow shaft with bolt mount, NEMA 56C
  • Dimensions (Pump Only): 9.13 x 6.65 x 6.50" / 232 x 169 x 165 mm
