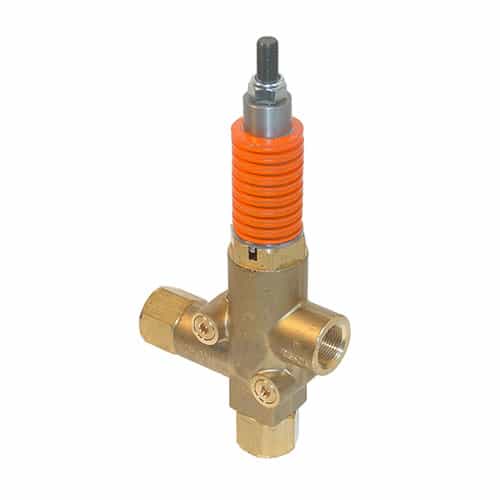

Giant 22973C Pressure-Actuated Unloader, 4060 PSI, 26.4 GPM
Brand:
Mfr. Model #:
22973C
KR Part #:
PU22973
Weight:
6.46 lbs
Pressure-actuated unloader that helps to regulate system flow. Brass body, with 3/4" FNPT inlet and outlet. Flow range of 2.1 GPM to 26.4 GPM.
Technical Specifications
Max PSI: 4060
Min PSI: 580
Max Temperature: 160 degrees F
Min GPM: 2.1
Max GPM: 26.4
Product Description
Brass Unloader to Regulate System Flow
The Giant 22973C pressure-actuated unloader is designed for any pump that fits within the flow and pressure range of the unloader. The unloader regulates the flow in the system and maintains system pressure via an adjustable nut that controls the amount of tension on a pressure spring. When no flow is going out the outlet port, all flow is diverted to the bypass port at virtually no pressure. The 22973C is capable of handling one or more shut-off guns and should be run with no bypass (if the full flow from the pump is going through the unloader). It actuates at around 10% above the system pressure.
Specifications:
- Maximum flow: 26.4 GPM
- Minimum flow: 2.1 GPM
- Maximum pressure: 580-4060 PSI
- Maximum temperature: 158°F
