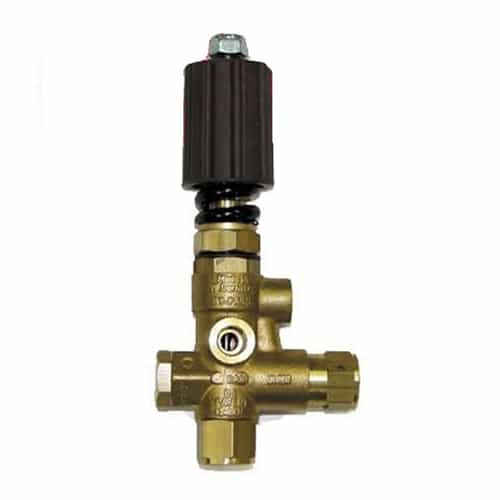

Giant Pumps 22760L Pressure Actuated Unloader, 600 PSI, 0.03 - 8.0 GPM
Brand:
Mfr. Model #:
22760L
KR Part #:
PU22760L
Weight:
2.10 lbs
Protect your pumps and easily regulate flow rate in your car wash pump systems with this low-pressure unloader. Brass unloader, 3/8" inlet and outlet. Handles continuous pressure up to 600 PSI.
Technical Specifications
Min PSI: 0
Max PSI: 600
Min GPM: 0.03
Max GPM: 8
Max Temperature: 160 degrees F
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Bypass Port: 1/4 inch
Product Description
Pressure Actuated Unloader
The Giant 22760L pow-pressure pressure actuated unloader regulates the flow in the system and maintains system pressure via an adjustable hand-wheel that controls the amount of tension on a pressure spring. When no flow is going out the outlet port, all flow is diverted to the bypass port at virtually no pressure. The unloader is capable of handling one or more shut-off guns and should be run with no bypass (if the full flow from the pump is going through the unloader). It actuates at around 10% above the system pressure.
Specifications:
- Normal Pressure Range: 0 PSI to 600 PSI
- Flow Range: 0.03-8.0 GPM
- Maximum Temperature: 160°F
- Inlet Port: 3/8" FNPT
- Outlet Port: 3/8" FNPT
- Bypass Port: 1/4" FNPT
