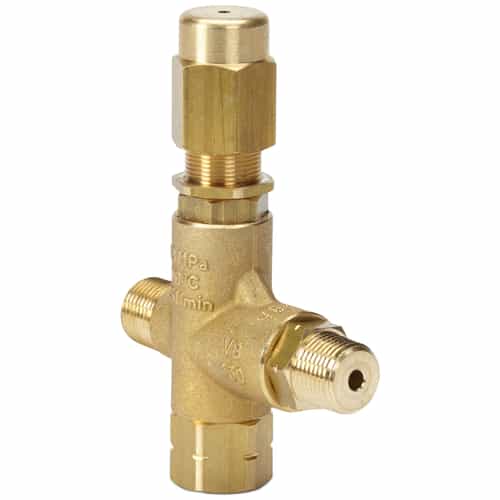

CAT Pumps 7581 Lo-Rego Regulating Unloader, 0.5-6.6 GPM
Brand:
Mfr. Model #:
7581
KR Part #:
PU07581
Weight:
0.92 lbs
Usually Ships in 2 Weeks
Pressure regulating unloader designed for single gun or pump operation. Maintains set system pressure, going into by-pass with the release of the trigger or a downstream obstruction. This pressure-sensitive feature permits a range of flows.
Pressure Washing
Technical Specifications
Min GPM: .5
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max PSI: 2320
Min PSI: 232
Max GPM: 6.6
Product Description
Pressure Sensitive Regulating Unloader
Designed for single gun or pump operation, the CAT 7581 Unloader maintains set system pressure, going into by-pass with the release of the trigger or a downstream obstruction. This pressure-sensitive feature permits a range of flows, and allows for full pressure to resume right away when the gun is opened or the obstruction is cleared. Easy adjustment of pressure through adjustment cap.
*Not for use with weep guns*
Specifications
- Min Flow: 0.5 GPM
- Max Flow: 6.6 GPM
- Min Pressure: 232 PSI
- Max Pressure: 2320 PSI
- Inlet Port: 3/8" NPT-M
- Outlet Port: 3/8" NPT-M
