Giant 22760 Unloader - 8 GPM, 3000 PSI

Mfr. Model #:
KR Part #:
2.05 lbs
In Stock
Now Only!
Pressure-actuated unloader designed for compatible pumps within the same pressure and flow range. Has port connection size of 3/8" NPT.

Technical Specifications

Max GPM: 8
Max PSI: 3000
Max Temperature: 160 degrees F

Product Description

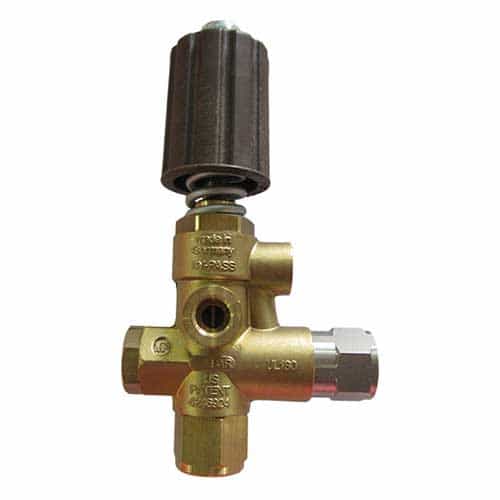

Giant Unloader

This is a pressure-actuated unloader that is designed for any pump that fits within the flow and pressure range of the unloader. The unloader regulates the flow in the system and maintains system pressure via an adjustable hand-wheel that controls the amount of tension on a pressure spring.  When no flow is going out the outlet port, all flow is diverted to the bypass port at virtually no pressure.  The unloader is capable of handling one or more shut-off guns and should be run with no bypass (if the full flow from the pump is going through the unloader).  It actuates at around 10% above the system pressure.  The unloader features a panel mount connection.

Port Connection Size: 3/8" FPT

  • (2) 1/4" FPT Bypass ports for plumbing ease
  • Max Temp.: 160°F
  • Ideal for multiple gun use
  • Brass and Stainless Steel construction
  • Maximum flow: 8 GPM
  • Maximum pressure: 3000 PSI
