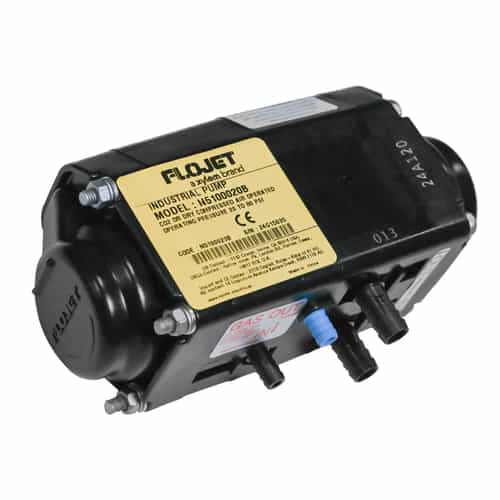

Flojet N5100020B Self-Priming Diaphragm Pump N5100 Series - 2.5 GPM, 1/4in, Viton

Mfr. Model #:
KR Part #:
1.11 lbs
In Stock
Now Only!
A Flojet N5100 Series air operated duplex diaphragm pump. This model is CE listed, with Acetal housing, Viton diaphragm and check valve, with 3/8 inch Hose barb liquid ports and 1/4 inch hose barb air/gas ports. It is driven by a built in air motor.
Prep 65

Prop 65


Technical Specifications

Inlet Port: 1/4 inch
Max GPM: 2.5
Max PSI: 80
Max Temperature: 120 degrees F

Product Description

N5100 Series AODD Pump

This pump is an air-operated positive displacement double diaphragm pump that is designed for light general commercial and industrial applications. It is constructed from a selection of materials for handling a broad range of chemicals.
This air-operated diaphragm pump offers excellent self-priming capability, and may be mounted above the liquid level or the supply tank. This series has a variable capacity from zero to the maximum flow, and liquid pressure is regulated by supply air pressure. No bypass or pressure relief plumbing is necessary. It has a compact design with plug-in quick disconnect liquid and gas port fittings for easy installation.
  • Max Flow Rate: Up to 2.5 GPM
  • Air Supply Pressure: 20 to 80 PSI
  • Temperature Range; 40 - 120 degrees F
  • Self Priming - Up to 28ft (8.5m)
  • Air Inlet/Outlet: 1/4" Hose Barb
  • Liquid Inlet/Outlet: 3/8" Hose Barb
  • Compact Design with Plug-In Hose Connections
  • Pressure Relief or Bypass Plumbing Unnecessary
