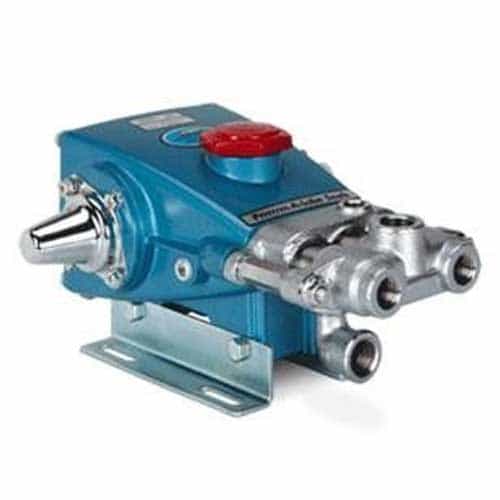

CAT Pumps 280 Triplex Piston Pump - 3 GPM, 1000 PSI, 1330 RPM

Brand:
Mfr. Model #:
280
KR Part #:
PU00280
Weight:
14.80 lbs

Out of stock - Pre-Order Now!

MSRP
$1,239.00
Now Only!
$658.23

This 3-frame piston pump delivers a flow rate of 3 GPM. Uniflow engineering creates continuous forward fluid flow for smooth operation. Endures 1000 PSI.

NOTE: This pump does NOT come with oil




Technical Specifications

Bore: 20 millimeter
Crankcase Capacity: 10 oz.
Inlet Port: 1/2 inch
Max GPM: 3
Max PSI: 1000
Max Temperature: 160 degrees F
RPM: 1330
Shaft Diameter: 16.5 millimeter
Stroke: 10 millimeter

Product Description

3-Frame Piston Pump

The CAT Pumps 280 is 3-Frame pump with Uniflow engineering that features a mechanically actuated inlet valve providing a continuous forward fluid flow and strong suction for efficient operation. It provides a flow rate of 3 GPM and endures a maximum pressure of 1000 PSI. Features NBR seals for chemical resistance. Cups and pistons are lubricated and cooled by the pumped liquid to increase the life of these components and the seals.

Specifications:

  • Max Flow: 3 GPM
  • Max Pressure: 1000
  • Inlet Port Size: 1/2" NPT(F)
  • Discharge Port Size: 3/8" NPT(F)
  • RPM: 1330
  • Crankcase Capacity: 10 oz
  • Max. Liquid Temperature (NBR): 160° F
  • Inlet Pressure Range: -8.5 to 40 PSI
  • Inlet Port: (1) 1/2" NPT(F)
  • Auxilary Port: (1) 1/4" NPT(F)
  • Discharge Ports: (2) 3⁄8" NPT(F)
  • Discharge Port: (1) 1/2" NPT(F)
  • Pulley Mounting: Either Side
  • Drive Type(s): Belt, Clutch
  • Shaft Diameter: 0.650"
  • Material: Brass
  • Dimensions: 10.63 x 8.79 x 5.30"

Features:

  • Triplex Uniflow design provides continuous forward liquid flow, promoting smooth operation.
  • Wetted cups and floating pistons are lubricated and cooled by pumped liquid, resulting in longer cup life.
  • Mechanically-actuated inlet valves create strong lift and an easier prime.
  • Optional 316 stainless steel manifolds provide added corrosion resistance.
  • Pump comes standard with NBR seals.
  • Alternative seal materials are available for higher temperature or chemical compatibility.
  • Please note that this pump does NOT come with oil - find authentic CAT Pumps Oil here.
