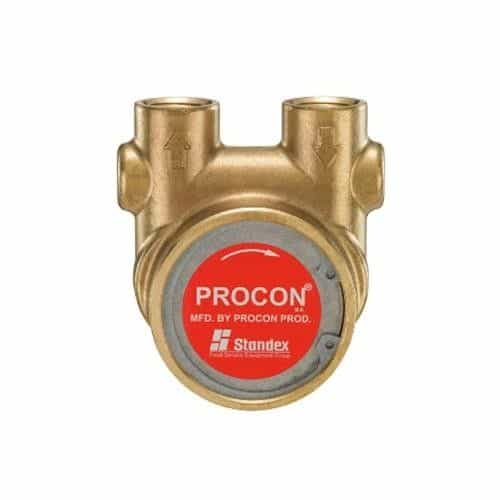

Procon 104B190R11XX Series 4 Brass Clamp-On Positive Displacement Rotary Vane Pump - 190 GPH, 250 PSI, 2400 RPM
Brand:
Mfr. Model #:
104B190R11XX
KR Part #:
PPCB2505AV
Weight:
3.00 lbs
Usually Ships in 3 Weeks
This clamp-on Procon rotary vane pump operates with minimal vibration and pulsation. Constructed with brass. Handles a maximum flowrate of 190 GPH.
Technical Specifications
Max GPM: 3.17
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Horsepower: 3/4
Max PSI: 250
Min Temperature: -4 degrees F
Max Temperature: 160 degrees F
RPM: 2400
Product Description
Clamp-On Rotary Pump
Procon's 104B190R11XX is a clamp-on Series 4 positive displacement rotary vane pump with a bronze coupling. Capable of self-priming in water with a 6 ft. maximum lift. This pump is equipped with 1/2 NPT inlet and outlet ports. Engineered to produce lower vibration and pulsation levels. Ideal for use in carbonation, espresso/coffee, welding, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.
Specifications:
- Agency Approvals: Non-Food Grade (1.5% Max. Lead)- No Agency Approval
- Series: Series 4 Brass
- Slotted with 1143 Bronze Coupling
- Flowrate: 190 GPH
- Elastomer: FDA Grade Nitrile - Type 21 or Type 2106 Used Interchangeably
- Rotation / Slinger / Passivation / Strainer: Clockwise
- Clearances: Standard Clearance
- Valve Type and Configuration: - No Relief Valve
- Pressure Range: No Setting
- Body Material Type: Brass
- Nominal Speed: 1725 RPM
- Typical Horsepower Required: .75 HP
- Rotation (Viewed from Nameplate End): Clockwise
- Dry Weight: Approximately 2.5 Lbs.
- Dimensions: 4.32" X 3.38" X 3.83"
- Self-Priming (Water): 6 Ft. Maximum Lift
- Port Size: 1/2 NPT Inlet and Outlet
Applications:
- Carbonation
- Espresso/Coffee
- Welding
- Cold Carb Circulation
- Reverse Osmosis
- Beer Chillers
- Pesticide Systems
- Solar Applications
