Procon 104B165F11XX Series 4 Clamp-On Rotary Vane Pump - 165 GPH, 1/2 in. Ports
Brand:
Mfr. Model #:
104B165F11XX
KR Part #:
PPCB2504A
Weight:
3.25 lbs
Availability:
3
Low Inventory Get It Today
Brass rotary vane pump with 1/2" ports and a 165 GPH flow rate. Low vibration and pulsation operation. Used for reverse osmosis.
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 165
RPM: 1725
Product Description

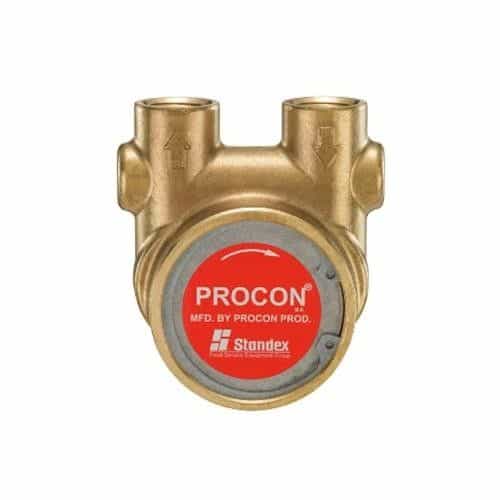

Brass 165 GPH Rotary Vane Pump
The Procon 104B165F11XX pump is a brass rotary vane pump that is part of Procon's Series 4 line. This positive displacement pump has 1/2" inlet and outlet ports, FDA grade nitrile seals, and a clamp-on mount. It has a 165 GPH flow rate and no pressure rating.This Series 4 rotary vane pump has low-vibration operation and self-priming capabilities. It is ideal for reverse osmosis and boosting applications.
Dimensions: 4.1" x 3.88" x 4.48"
Specifications:
- Mounting and Drive: Clamp-On with 1143 Bronze Coupling
- Flow Rate: 165 GPH
- Elastomer: FDA Grade Nitrile
- Rotation: Clockwise
- Clearances: Standard
- Valve Type and Configuration: No Relief Valve
- Default Pressure Setting: No Setting
- Body Material: Brass
- Nominal Speed: 1725 RPM
- Self Priming: 6' maximum lift
- Inlet Port: 1/2" NPT
- Outlet Port: 1/2" NPT
- Self Priming
- Maintenance Free
- Low Vibration and Pulsation Characteristics
- Circulation
- Reverse Osmosis
- Booster
- Solar Applications
- Hydraulic Systems
- Desalination
