John Guest 14SCV Acetal Push-Fit Check Valve - 1/4 Push x 1/4 Push
Brand:
Mfr. Model #:
1/4SCV
KR Part #:
JG4CV
Weight:
0.02 lbs
GTIN:
665626175480
Acetal check valve with a stainless steel spring and an EPDM seat. Single-flow straight design with push-fit connections. 150 PSI max pressure and 150° F max temperature.
Technical Specifications
Max PSI: 150
Max Temperature: 150 degrees F
Min Temperature: 33 degrees F
Product Description

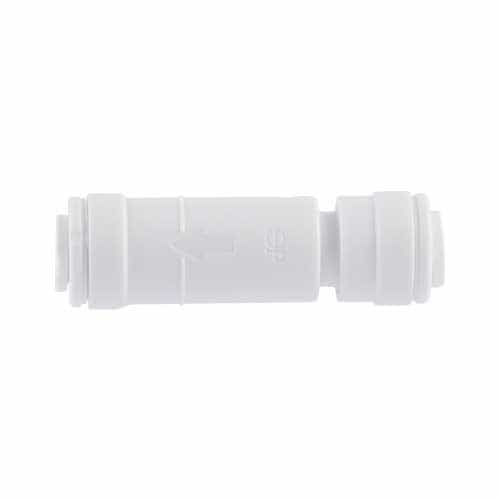

1/4" Push-Fit Acetal In-Line Check Valve
This John Guest 14SCV Check Valve is a straight design check valve with push-fit connection points. Made with acetal resin, this in-line check valve has a stainless steel spring and an EPDM seat. An excellent general purpose check valve for a variety of tubing including PVC, nylon, polyethylene, brass, and copper.
Specifications:
- 1/4" Push-Fit x 1/4" Push-Fit
- 150 PSI
- Acetal resin copolymer
- In-line spring design
- Horizontal or vertical mounting
- 150° Fahrenheit maximum temperature
- 33° Fahrenheit minimum temperature
- Stainless steel spring material
- EPDM seat
- NSF-61 and NSF-51 standards
