General Pump TS1011L T Series 47 S Plunger Pump, 4.5 GPM, 2000 PSI, 1750 RPM, Left Shaft
Brand:
Mfr. Model #:
TS1011L
KR Part #:
GPTS1011L
Weight:
32.40 lbs
GTIN:
682491026433
Availability:
1

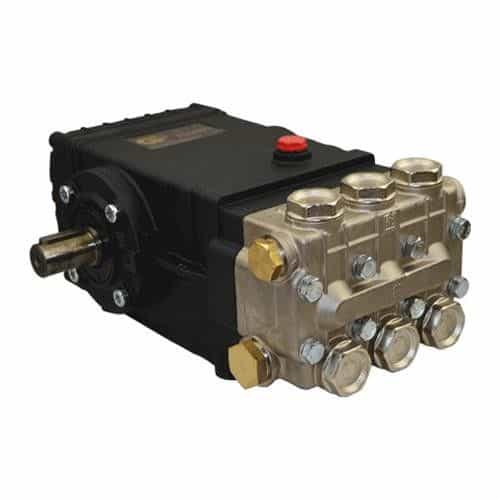

The General Pump TS1011 model features a right shaft, 20 mm bore, and 16 mm stroke. Over-sized connecting rods, unitized steel valves, and heavy-duty tapered roller bearings provide excellent durability and reliability. The General Pump T Series 47 S pump frame is the preferred pump frame in the pressure cleaning industry! Note: This model has a left shaft, right shaft is pictured.
Technical Specifications
Bore: 20 millimeter
Shaft Diameter: 24 millimeter
RPM: 1450
Max Temperature: 165 degrees F
Max PSI: 2000
Max GPM: 4.75
Inlet Port: 1/2 inch
Crankcase Capacity: 33.8 ounce
Product Description
General Pump TS1011 Triplex Pump
The General Pump T Series 47 S pump is the preferred pump frame in the pressure cleaning industry! One special feature of the General Pump TS1011L model is that its forged brass manifold has an exclusive lifetime warranty.
The TS1011L model has a large-capacity, die-cast, anodized aluminum oil-bath crankcase. It features over-sized connecting rods, unitized steel valves, and heavy-duty tapered roller bearings. Its solid ceramic plungers have continuously lubricated packings. Left side shaft for power delivery.
General Pump TS1011L Dimensions: 12.2" x 9.2" x 6.9"
Features:
- Left shaft
- Triplex design (three plunger rods)
- Unitized stainless steel inlet and discharge valves
Specification:
- Maximum volume: 4.0GPM/4.5 GPM
- Maximum discharge pressure: 2000 PSI/1500 PSI
- Maximum pump speed: 1450 RPM/1750 RPM
- Crankcase oil capacity: 33.8 oz.
- Maximum fluid temperature: 165 degrees F
- Inlet port thread: 1/2-14 BSPP-F
- Discharge port thread: 3/8-19 BSPP-F
- Shaft diameter: 24mm
