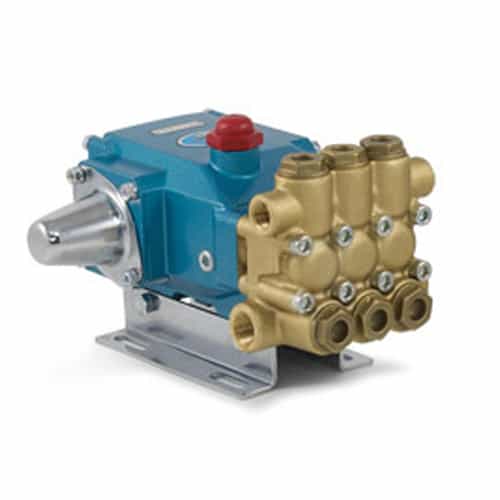

CAT Pumps 3CP1120.3400 High Temperature 3CP Triplex Plunger Pump - 4.2 GPM, 2200 PSI, 1725 RPM
Brand:
Mfr. Model #:
3CP1120.3400
KR Part #:
PU3CP1120.3400
Weight:
16.53 lbs
Out of stock - Pre-Order Now!
A plunger pump with seals for high temperature applications. Triplex design delivers high efficiency and low pulsation. Both of its inlet ports measure 1/2" NPTF and its two outlet ports measure 3/8" NPTF.
NOTE: This pump does NOT come with oil
Technical Specifications
Max PSI: 2200
RPM: 1725
Max GPM: 4.2
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Crankcase Capacity: 12 ounce
Max Temperature: 190 degrees F
Product Description
2200 PSI - High Temperature Plunger Pump
The CAT Pumps 3CP1120.3400 is a triplex plunger pump that is furnished with high temperature seals that endure a maximum fluid temperature of 190 degrees Fahrenheit. Designed with press-in style seal cases and interchangeable valve assemblies to make servicing the pump easy and efficient so you can get it back into service quickly. The pump is engineered with special high-density, polished plungers to extend the seal life. Brass manifold withstands a maximum pressure of 2200 PSI and the pump provides a flow rate of 4.2 GPM.
Specifications:
- Max Flow: 4.2 GPM / 15.9 LPM
- Max Pressure: 2200
- Inlet Ports (2): 1/2" NPT(F)
- Discharge Ports (2): 3/8" NPT(F)
- RPM: 1725
- Stroke: 0.500" (12.7 mm)
- Inlet Pressure Range: Flooded to 70 PSI
- Bore: 0.709" (18 mm)
- Crankcase Capacity: 12 oz. (0.35 l)
- Liquid Temp. (STHT): 190° F
- Pulley Mounting: Either Side
- Shaft Diameter 0.650" (16.5 mm)
- Drive Type(s): Belt, Clutch, Flexible Coupling and Bellhousing
- Material: Brass
- Dimensions: 9.13" x 8.78" x 5.71"
- Please note that this pump does NOT come with oil - find official CAT Pumps Oil here.
