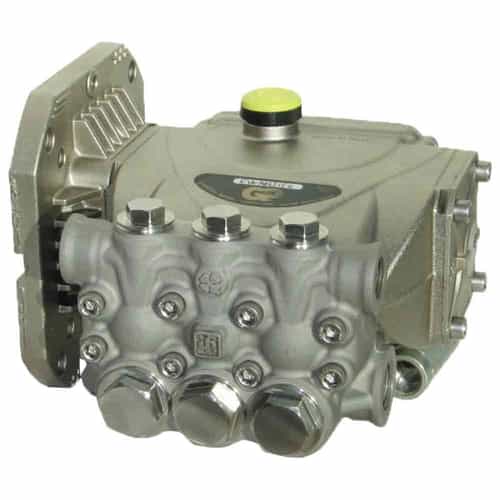

General Pump EWM3715C Salt Water EWM Series Pump - 5/8 Inch Hollow Shaft, 3.7 GPM, 1500 PSI, 1750 RPM
Brand:
Mfr. Model #:
EWM3715C
KR Part #:
GPEWM3715C
Weight:
12.00 lbs
GTIN:
682491125143
Availability:
1
This compact plunger is constructed to handles salt water applications. Fluid end is constructed with 316 stainless steel. Handles a maximum pressure of 1500 PSI, flow rate of 3.7 GPM, and motor speed of 1750 RPM.
Technical Specifications
Max GPM: 3.7
Max PSI: 1500
RPM: 1750
Bore: 18 millimeter
Stroke: 11.5 millimeter
Crankcase Capacity: 8.5 ounce
Max Temperature: 185 degrees F
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Shaft Diameter: 5/8 inch
Product Description
5/8" Hollow Shaft Plunger Pump
The General Pump EWM3715C is a triplex plunger pump that is engineered to endure applications involving salt water. Features a corrosion resistant 316 stainless steel fluid end and a nickel plated crankcase. Plungers are coated with an advanced surface finish to provide increased durability and longevity. The pump is equipped with a 5/8" hollow shaft for coupling to motors with a 56C mounting flange. Produces a maximum flow rate of 3.7 GPM, a maximum pressure of 1500 PSI.Specifications:
- Maximum Volume: 3.7 GPM
- Maximum Discharge Pressure: 1,500 PSI
- Maximum Pump Speed: 1750 RPM
- Rated Inlet Pressure: 125 PSI
- Plunger Bore (in / mm): .709/18 mm
- Plunger Stroke (in / mm): .452/11.5mm
- Crankcase Oil Capacity 8.5 oz.
- Maximum Fluid Temperature 185o F
- Inlet Port Thread 1/2" NPT-F
- Discharge Port Thread 3/8" NPT-F
- Shaft Diameter 5/8" Hollow
- Weight 12.00 lbs.
- Dimensions 7.5" x 7.5" x 5.5"
- 316 Stainless Steel fluid end for superior corrosion protection
- Designed for use in salt water applications
- Solid ceramic plungers with advanced surface finish assure durability and longevity.
- Compact design offers solutions to space limitations
- Nickel-plated crankcase
- 56C mounting flange
