Spraying Systems AA430ML Strainer - 1 1/4in. NPTF 30 Mesh

Brand:
Mfr. Model #:
AA430ML-1-1/4-PP-30
KR Part #:
STR430-20-30
Weight:
2.04 lbs
Out of Stock - Pre-Order Now
MSRP
$110.68
Now Only!
$48.35
A polypropylene liquid strainer that protects nozzles, valves and pumps from damaging debris and minimizes clogging. 30 Micron wire mesh, with 1.25" NPT inlet and outlet.



Technical Specifications

Max PSI: 110
Inlet Port: 1 1/4 inch
Outlet Port: 1 1/4 inch

Product Description

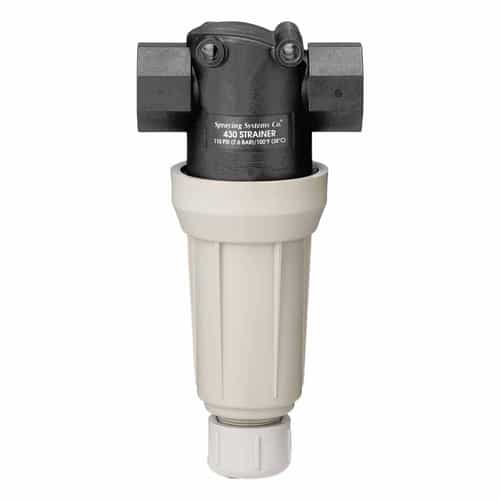

Spraying Systems 430 T-Style Strainer

This Spraying Systems 430 Strainer features a larger size screen area that requires less frequent cleaning, and has a removable bottom cap or plug for complete withdrawal of the screen assembly during cleaning. Mounting holes make for easy attachment on machinery or angle iron. Threaded female connections, 1.25" x 1.25" NPT

Dimensions: 11.72in x 5.6in

Specifications:
  • Inlet: 1 1/4" NPTF
  • Outlet: 1 1/4" NPTF
  • 30 Mesh (.021 opening)
  • Polypropylene body, nylon bowl
  • Max pressure: 110 PSI
  • Max temp: 100 degrees F
