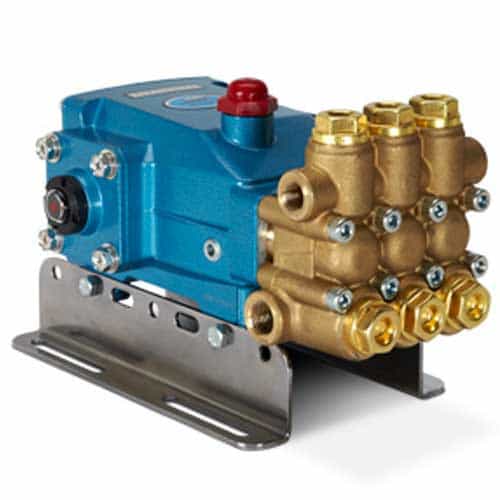

CAT Pumps 5CP4120BHCU Plunger Pump Package with Accessories - 4.5 GPM, 4000 PSI

Mfr. Model #:
KR Part #:
22.00 lbs
Usually Ships in 2 Weeks
Now Only!
Five frame plunger pump with 4000 PSI max pressure and 4.5 GPM flow rate. Also includes a motor coupling, shaft coupler, and a regulating unloader. All genuine CAT Pumps products.

Technical Specifications

Max PSI: 4000
Crankcase Capacity: 17 ounce
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Max Temperature: 160 degrees F
RPM: 1750
Bore: 15 millimeter
Stroke: 20 millimeter
Max GPM: 4.5

Product Description

4000 PSI Pump with Motor Coupling, Unloader, and Shaft Coupler

The CAT Pump 5CP4120BHCU Pump Package includes a plunger pump, bell housing, flex coupler, and a pressure unloader. The pump is a triplex style plunger pump with a forged brass manifold, 304 stainless steel valve assemblies, and Buna-N seals. It is a five frame model that can be used in applications up to 3000 PSI.

Package Includes:

  • 5CP3120CSS Pump
  • 76184.5CP Bell House
  • 8230 Flex Coupler
  • 7694 Unloader

Pump Specifications:

  • Maximum Pressure: 4000 PSI
  • Maximum Flow: 4.5 GPM
  • Maximum Speed: 1750 RPM
  • Inlet Pressure: -2.5 to 60 PSI inlet
  • Maximum Temperature: 160° F
  • Inlet Port: 1/2" FNPT
  • Outlet Port: 3/8" FNPT
  • .590" bore
  • 17 oz. crankcase oil capacity
