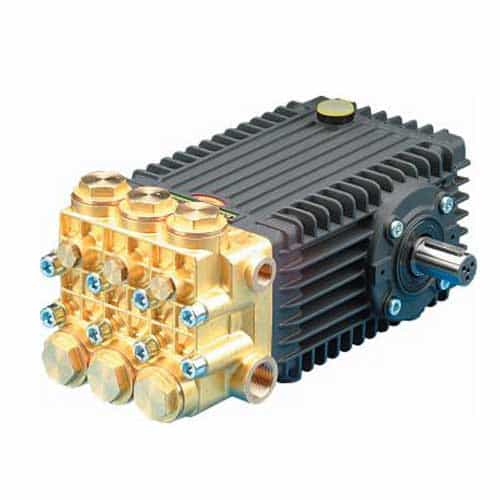

General Pump TSF2019DS TS 66 Series Dual Shaft Pump 7.6 GPM 4000 PSI
Brand:
Mfr. Model #:
TSF2019DS
KR Part #:
GPTSF2019DS
Weight:
40.70 lbs
GTIN:
682491034100
TSF2019 model dual shaft high flow triplex pump. It features oversized roller bearings and a fully anodized crankcase. It reaches a maximum pressure of 4000 PSI.
Technical Specifications
Bore: 20 millimeter
Crankcase Capacity: 40.6 ounce
Horsepower: 20.8
Inlet Port: 3/4 inch
Max GPM: 7.6
Max PSI: 4000
Max Temperature: 165 degrees F
Shaft Diameter: 24 millimeter
Stroke: 19 millimeter
Product Description
4000 PSI General Pump
This pump comes with professional quality at an affordable price. It is a one-piece plunger design that eliminates water in the crankcase and runs cooler than axial pumps.
Dimensions: 14.94" X 9.78" X 6.99"
- Oversized roller bearings
- Fully anodized crankcase
- Innovative new seal design extends seal life
- New plunger design improves thermal shock resistance
- New valve cap improves hydrostatic performance
Specifications:
- Max Inlet: 125 PSI
- Max Fluid Temperature: 165 degrees
- Inlet Port: 3/4"
- Shaft Diameter: 945"
- Crankcase Oil Capacity: 40.6
