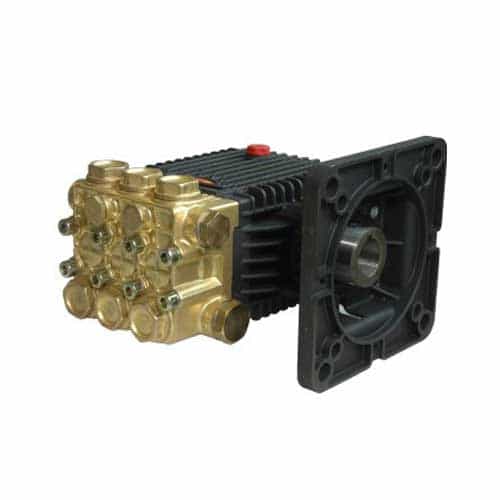

General Pump TX1510E349 Series 63 Triplex Plunger Pump, 4 GPM, 3000 PSI, 3400 RPM, Right Shaft
Brand:
Mfr. Model #:
TX1510E349
KR Part #:
GPTX1510E349
Weight:
18.00 lbs
GTIN:
682491073871
This General Pump has a new generation seal system that allows for a longer life. Flanged for direct coupling to NEMA 184TC electric motor. Forged brass manifold with exclusive lifetime warranty.
Technical Specifications
Max PSI: 3000
RPM: 3400
Bore: 15 millimeter
Crankcase Capacity: 14 ounce
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Shaft Diameter: 1 1/8 inch
Stroke: 10 millimeter
Product Description
3000PSI General Pump
The General Pump TX1510E349 is a durable and reliable triplex plunger pump with 1.125" hollow shaft. Boasts high power performance and flanged mounting for direct couple to electric engines (NEMA 184TC). Industry-grade construction helps prolong service life to save you time and money.
Dimensions: 8.6" x 7.9" x 5.7"
- Triplex Plunger Pump
- Compact design
- Forged brass manifold with exclusive lifetime warranty
- Die/cast, anodized aluminum oil/bath crankcase
- Long life, low pressure seals
- Oversized roller bearings and sight glass
- Right side shaft
- Flanged for direct couple to electric engine (NEMA 184TC)
Specifications:
- Max Volume: 4 GPM
- Max Discharge Pressure: 3000 PSI
- Max Pump Speed: 3400 RPM
- Max Inlet Pressure: 125 PSI
- Inlet Port: 1/2" BSPP-F
- Discharge Port: 3/8" BSPP-F
- See more under the Specifications tab
