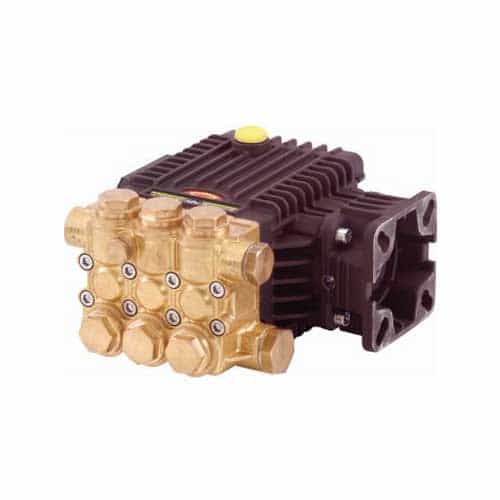

General Pump TC1507G Plunger Pump 3 GPM 2700 PSI
Brand:
Mfr. Model #:
TC1507G
KR Part #:
GPTC1507G
Weight:
14.60 lbs
GTIN:
682491119579
This General Pump has a new generation seal system that allows for a longer life. High-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals.
Technical Specifications
Max PSI: 2700
RPM: 3400
Bore: 15 millimeter
Crankcase Capacity: 11.8 ounce
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Shaft Diameter: 3/4 inch
Stroke: 7.2 millimeter
Product Description
2700 PSI General Pump
This General Pump TC1507G pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. Features ceramic plungers and high-tech packings. Nickel-plated forged brass manifold features lifetime warranty. Ideal for use in car washing and other high pressure applications.
Dimensions: 7.6" x 7.6 x 5.1"
- Triplex Plunger Pump
- Compact design
- Forged brass manifold
- Die/cast, anodized aluminum oil/bath crankcase
- Long life,
low pressure seals - Oversized bearings and sight glass
Specifications:
- Max Volume: 3.0 GPM
- Max Discharge Pressure: 2700 PSI
- Max Pump Speed: 3400 RPM
- Max Inlet Pressure: 125 PSI
- See more under the Specifications tab
