General Pump TC1809E175 Plunger Pump 3.1 GPM 2200 PSI
Brand:
Mfr. Model #:
TC1809E175
KR Part #:
GPTC1809E175
Weight:
15.10 lbs
GTIN:
682491119494
This General Pump has a new generation seal system that allows for a longer life. High-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 11.8 ounce
Inlet Port: 1/2 inch
Max PSI: 2200
Max Temperature: 165 degrees F
Shaft Diameter: 5/8 inch
Stroke: 9.4 millimeter
Max GPM: 3.1
RPM: 1750
Product Description
2200 PSI General Pump

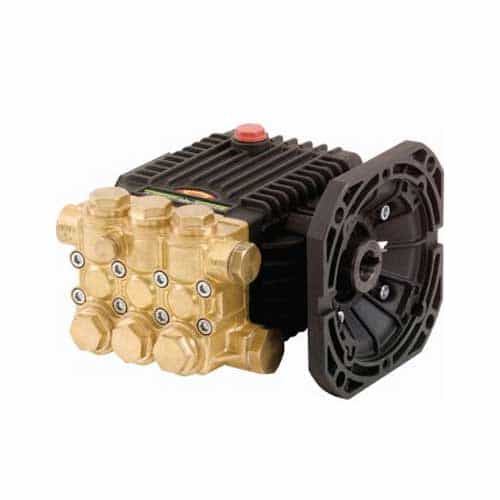

This General Pump TC1809E175 pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system.
Dimensions: 7.8" x 7.3 x 5.5"
- Triplex Plunger Pump
- Compact design
- Forged brass manifold
- Die/cast, anodized aluminum oil/bath crankcase
- Long life,
low pressure seals - Oversized bearings and sight glass
Specifications:
- Max Volume: 3.1 GPM
- Max Discharge Pressure: 2200 PSI
- Max Pump Speed: 1750 RPM
- Max Inlet Pressure: 125 PSI
- See more under the Specifications tab
