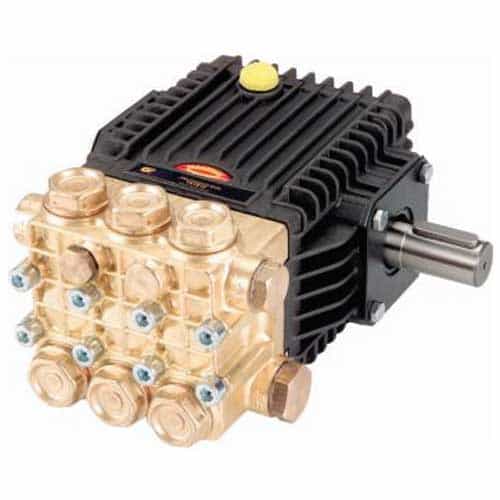

General Pump TX1813S17 Series 63 Triplex Plunger Pump, 4.1 GPM, 2500 PSI, 2500 RPM, Right Shaft
Brand:
Mfr. Model #:
TX1813S17
KR Part #:
GPTX1813S17
Weight:
19.00 lbs
GTIN:
682491119678
Features oversized bearing and a new generation seal system for longer life in carwash and pressure wash usage. Forged brass manifold with exclusive lifetime warranty. Up to 4.1 GPM flow, at pressures up to 2500 PSI.
Technical Specifications
Max GPM: 4.1 GPM
Max PSI: 2500 PSI
RPM: 1750
Crankcase Capacity: 14.0 oz.
Max Temperature: 165 degrees F
Bore: 18 millimeter
Crankcase Capacity: 14 ounce
Horsepower: 5.6
Inlet Port: 1/2 inch
Max GPM: 4.1
Max PSI: 2500
Shaft Diameter: 24 millimeter
Stroke: 13 millimeter
Product Description
63 Series Pressure Cleaning Pump
This TX1813S17 pump is a triplex plunger pump featuring a solid ceramic plunger with a dual guide system. Its new optimized outlet valves help with a long lasting life warranty. Features solid, oversized bearings on both sides and a new generation seal system for longer life.
Dimensions: 8.4" x 8.3" x 4.8"
Features:
- Energized special pressure packings.
- Solid ceramic plungers.
- Ball bearings on both sides.
- Patented "high tech" low and high-pressure seals.
- Solid right shaft, 24mm
Specifications:
- Max Volume: 4.1 GPM
- Max Discharge Pressure: 2500 PSI
- Max Pump Speed: 1750 RPM
- Max Inlet Pressure: 125 PSI
- Inlet Port: 1/2"-14 BSPP-F
- Discharge Port: 3/8"-19 BSPP-F
- UPC: 682491119678
- See more under the Specifications tab
