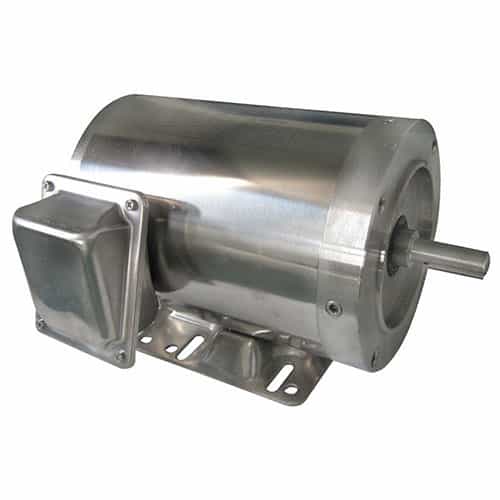

Continuous Duty Washdown Motor

This continuous duty motor is engineered to prevent moisture and debris from entering internal areas where critical components are housed. Stainless steel is used in the construction of the motors frame helping it resist corrosion in wet environments. Great for areas in car washes with high humidity, wet environments and environments where the motor is exposed to high pressure washdowns. Motor reaches a maximum of 1800 RPM. The motor is completely enclosed and nonventilated.

Specifications:

• Item: Washdown Motor

• Motor Application: Washdown

• Motor Design: 3-Phase

• Motor Enclosure Design: Totally Enclosed Nonventilated

• HP: 1

• Nameplate RPM: 1740

• Frame: 56HC

• Motor Shaft Rotation: CW/CCW

• Voltage: 230/460

• Full Load Amps: 3/1.5

• Phase: 3

• Hz: 60

• Motor Mounting Type: Face/Base

• Motor Bearings: Ball

• Motor Frame Material: Stainless Steel

• Motor Thermal Protection: None

• Motor Service Factor: 1.15

• Max. Ambient Temperature: 40 Degrees C

• Shaft Diameter: 5/8 in

• Shaft Length: 1 7/8 in

• Motor Shaft Design: Keyed

• Overall Length: 11 7/16 in

• Ins. Class: F

• RPM Range: 1701-1800

• Duty: Continuous

• Shaft Material: 300 Series Stainless Steel

• Drain Plugs: 4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor)

• Endshields: 300 Series Stainless Steel

• Motor Efficiency Group: Premium Efficient

• Nominal Efficiency: 85.5 %

• CC Number: CC082A

• Standards: CE Compliant, CSA Certified, UL Component Recognized

• Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460


Applications:

• Car Washes

• Wet Environments

• Humid Climates

• High pressure washdown zones
