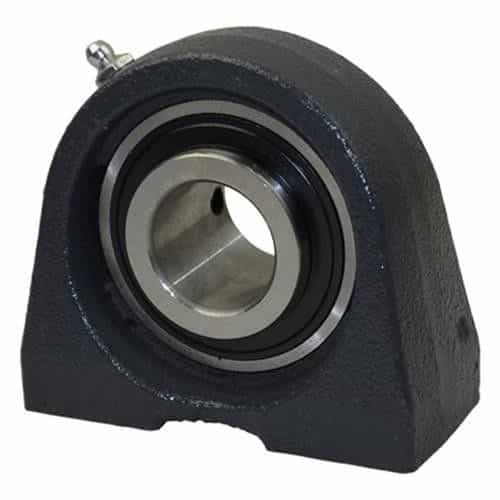

IPTCI UCPA207-20 Cast Iron Tapped Base Pillow Block for 1 1/4 in. Shafts

Brand:
Mfr. Model #:
UCPA207-20
KR Part #:
UCPA20720
Weight:
3.83 lbs
Low Stock Warning
MSRP
$77.82
Now Only!
$48.65
Standard duty pillow block with a cast iron housing and B-type seals. Use with 1 1/4" shafts. On center measurement is 3 1/4".
Conveyor & Tunnel

Conveyor & Tunnel




Product Description

3 1/4" On Center Pillow Block

The IPTCI UCPA207-20 is a standard duty pillow block with a wide inner race bearing and a set screw lock. Used with 1 1/4" diameter shafts. This automatic car wash pillow block has a cast iron housing and B-type seals.

Specifications:

  • For 1.25" diameter shafts
  • Cast iron housing
  • Wide inner race bearing
  • B-type seals
  • 3.25" on center
  • Set screw lock
  • Tapped base
  • Bearing Number: UC 207-20
  • Housing Number: PA 207
  • Weight: 3.83 lbs.

Dimensions From Drawing:

  • Dimension A: 4 1/4"
  • Dimension B: 1 7/8"
  • Dimension D: 3/4" minimum tap depth
  • Dimension d: 1 1/4" shaft diameter
  • Dimension E: 3 1/4"
  • Dimension F: 1/2-13 tapped holes
  • Dimension H: 1 7/8"
  • Dimension M: 1"
  • Dimension Bi: 1.689"
