Left Shaft Pump with Flange, Injector, Unloader

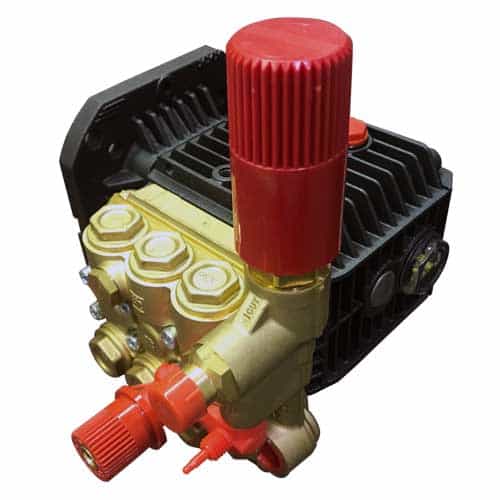

The General Pump TT9071EBFUIL Pump is a triplex plunger pump that includes a left-mounted flange for electric NEMA 56C motors with a maximum speed of 3400 RPM. Has a maximum flow rate of 2.8 GPM and a maximum pressure of 1500 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!

This model includes a chemical injector so you can use soaps and detergents with the pump and an unloader to maintain consistent pressure.

Dimensions: 7.2" x 7.2" x 5.5"

Specifications:

• 1500 PSI maximum pressure

• 125 PSI maximum inlet pressure

• 2.8 GPM maximum flow rate

• 3400 maximum RPM

• 5/8" ( shaft diameter

• 11.2 ounce crankcase capacity

• 3/8" inlet port

• 1/4" discharge port

• 6.6 mm stroke

• 15mm stroke

• 165° degrees Fahrenheit maximum temperature

• Left shaft

• 3' water inlet

• Weight: 12 lbs.

Features:

• Forged brass manifold with exclusive lifetime warranty

• Die-cast annodized aluminum, oil-bath crankcase

• Solid ceramic plungers with continuously lubricated packings

• The original Interpump unitized, stainless steel, K01 inlet and outlet valves

• Ideal for all general cleaning applications

• Comes standard with NEMA 56C electric motor mounting flange

• Includes a pressure unloader and chemical injector
