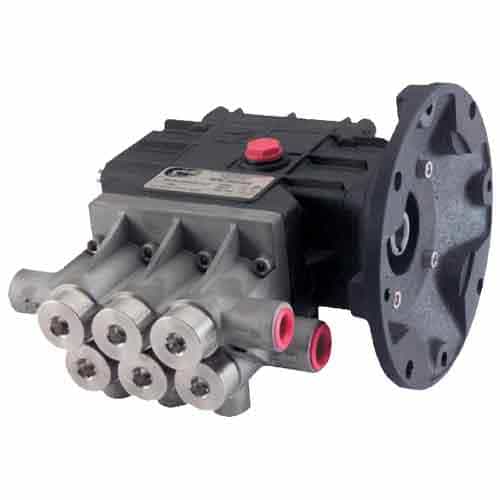

General Pump WM2315C WM Series Reverse Osmosis Pump, 2.3 GPM, 1500 PSI
Brand:
Mfr. Model #:
WM2315C
KR Part #:
GPWM2315C
Weight:
13.50 lbs
GTIN:
682491030911
Quality reverse osmosis pump with parallel inlet and outlet design. Intelligent design offers efficiency and easy maintenance, compact size takes up less pump room space. Up to 2.3 GPM flow, with pressures up to 1500 PSI.
Technical Specifications
Bore: 18 millimeter
Crankcase Capacity: 12 ounce
Inlet Port: 1/2 inch
Max GPM: 2.3
Max PSI: 1500
Max PSI: 1500
Max Temperature: 140 degrees F
RPM: 1750
Shaft Diameter: 5/8 inch
Stroke: 7.5 millimeter
Product Description
1500 PSI Car Wash Pump
The compactly designed WM2315C from General Pump is a reverse osmosis pump with a hollow shaft, parallel inlet and outlet valves, needle bearing, and stainless steel fasteners. The valves, packing kit, and crankcase are designed to be corrosion resistant. Great for water treatment, purification, and filtration applications.
Dimensions: 9" x 7.5" x 6"
Details:
- 300 Series stainless steel fasteners
- Parallel inlet and outlet valve design for efficiency and easy maintenance
- Corrosion resistant valve and packing design
- Innovative wear-resistant high and low pressure seals
- Dual inlet and outlet porting
- Anodized crankcase for corrosion resistance
- NEMA 56C flange with 5/8" hollow shaft
- Right-handed shaft
Specifications:
- Maximum Flow: 2.3 GPM
- Maximum Pressure: 1500 PSI
- Maximum Pump Speed: 1750
- Maximum Temperature: 140°F
- Inlet Port: 1/2" NPT-F
- Discharge Port: 3/8" NPT-F
