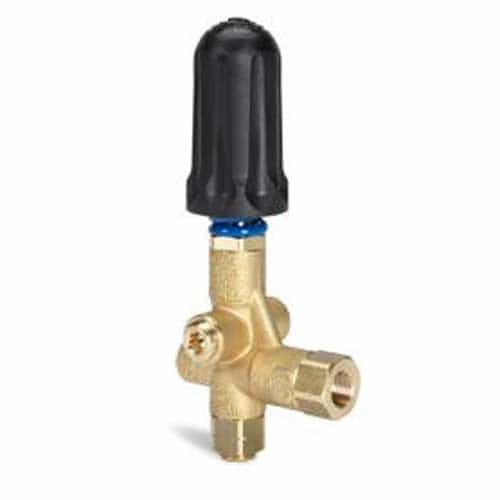

CAT Pumps 7693 Brass Regulating Unloader - 10.5 GPM, 2300 PSI
Brand:
Mfr. Model #:
7693
KR Part #:
PU7693
Weight:
1.66 lbs
Availability:
2
Low Inventory Get It Today
Brass body unloader. Adjustable from 230-2300 PSI. Has a max flow rate of 10.5 GPM and a 3/8" FNPT inlet, outlet, and bypass ports. Official CAT factory product.
Technical Specifications
Max PSI: 2300
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Bypass Port: 3/8 inch
Max GPM: 10.5
Max Temperature: 140 degrees F
Product Description
High-Pressure Brass Unloader
The CAT Pumps 7693 Unloader Offers your pump protection from pressure-related damage. Simple to install thanks to smaller design. Reliable service and long-lasting operation life.
Dimensions: 7.51" x 3.25" x 1.97"
Specifications:
- 230-2300 PSI pressure range
- 2.5 to 10.5 GPM
- 3/8" inlet ports (x2)
- 3/8" outlet port
- 3/8" bypass ports (x2)
- 140° Fahrenheit maximum temperature
- Standard Buna-N o-rings
- Weight: 1.66 lbs.
Product Reviews
Frequently Asked Questions
Question:We have an older model unloading valve installed currently. What would be installed in the bottom of this unloader. It may be a safety relief, but I am not sure. Why would you install anything else into this part PU7693?
-
Dylan
(02/08/2021)
Response:No other valves would need installed on the unloader valve. If you need further assistance installing, please contact our sales department 800-233-3873
