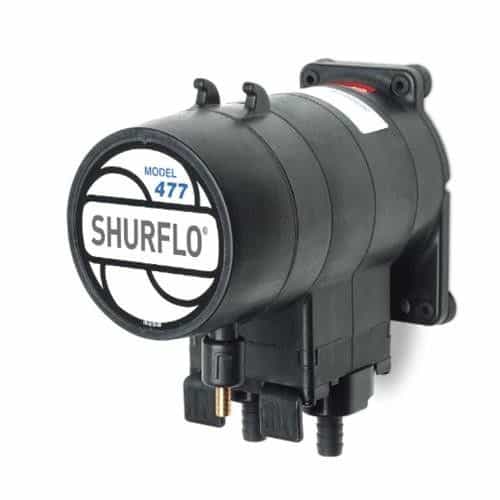

ShurFlo 477-400-02 AODD Air Pump - 7 GPM
Brand:
Mfr. Model #:
477-400-02
KR Part #:
SF47740002
Weight:
3.59 lbs
The ShurFlo Series 477 air operated double diaphragm pump was developed for chemical transfer, injection and spraying applications.
Technical Specifications
Max GPM: 10
Max PSI: 100
Max Temperature: 120 degrees F
Product Description
477 Series AODD Pump
This AODD pump features a directional control spool design that eliminates the stalling problems associated with over center directional control designs. With an open flow capacity of up to 10 gpm, the ShurFlo Model 477 pump will easily handle your current lower 5 gpm open flow applications, and will also apply to many applications currently using a 14 gpm open flow pump.Features:
- High-Efficiency, No Stall Pneumatic Spool Valves for Long Life
- Up to 10 GPM Open Flow @ 100 PSI Air Pressure [37.8 LPM @ 689 kPa]
- 40-100 PSI Air Pressure Operating Range [275 - 689 kPa]
- Pumps Handle Caustic or Acidic Fluids, Including High-Viscosity Fluids
- Available in Santoprene and Viton
- Industry Standard Mounting and Ports
- Both 1/2" & 3/4" Barbed Liquid Port Fittings Included
- Can Run Dry without Damage
