Quiet 516 Pump - Left Shaft

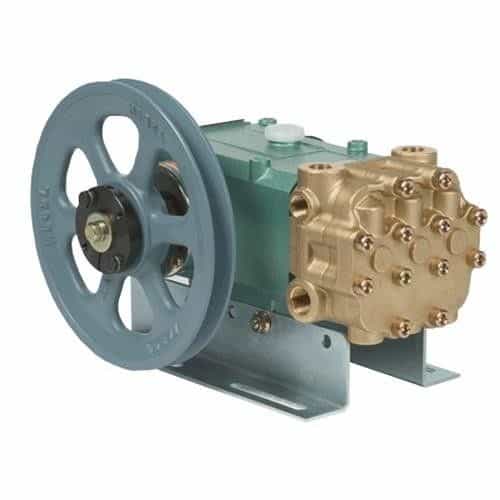

Arimitsu's 61002 is an upgrade package used to replace a CAT 310 or 5CP pump. The 516 pump is quieter than the CAT models it replaces. The package includes a model 516 pump, 7.2" pulley assembly, and rail set. Balanced flow crankcase is designed to ensure quiet operation. This version features a left-hand shaft.

Specifications:

• Flow: 4 GPM @ 950 RPM, 5GPM @ 1200 RPM

• Pressure: 2200 PSI @ 950 RPM, 2000 PSI @ 1200 RPM
• RPM: 950/1200

• Shaft Diameter: 18mm

• Inlet Pressure: -5 to 70 PSI

• Inlet: 1/2"

• Outlet: 3/8"

• Oil Requirement: 17 oz

• Max Liquid Temp.: 175°F

• Shaft Location: L

Features

• Triplex pumps provide smooth liquid flow

• Liquid cooled, low drag seals provide long life, improved suction, higher efficiency and longer dry running without damage

• Balanced flow crankcase design and precision machining ensure uniform lubrication and quiet operation

• Manifold is designed and machined to guarantee superior fluid flow

• Interchangeable valves for maintenance ease

• Zero-clearance exclusionary seals protect crankcase


Quality

• Stainless steel valves with polished valve seats and hardened seating surfaces for efficient operation

• Precision ground ceramic plungers utilize a proprietary material blend for long life and increased thermal

Shock Resistance

• Forged brass manifolds offer strength and corrosion resistance

• Proprietary, proven seal blend maximizes life and lengthens maintenance intervals

• Oversized crankshaft bearings for long life and quiet operation


Maintenance

• No special tools required for repair or maintenance

• Fluid end is easily serviced without entering crankcase

• Easy access seal case and valve assemblies

• Seals self-compensate for wear
